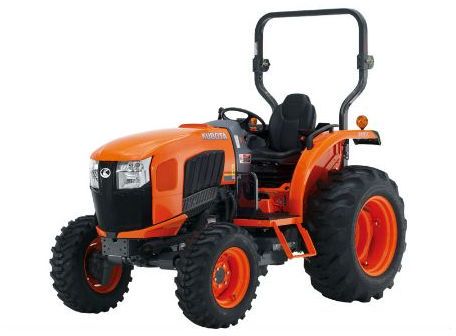

Kubota L5460HSTRC
Browse All Kubota or MFWD Tractor Models
Contents:
Dimensions
| Overall Length | 126.38 in (3210 mm) |
| Wheelbase | 6.29 ft in (1915 mm) |
| Overall Width | 5.62 ft in (1710 mm) |
| Ground Clearance | 15.44 in (392 mm) |
| Height With Rops | 8.17 ft in (2490 mm) |
| Front Tread Range | 52.76 in (1340 mm) |
| Rear Tread Range | 52.2-56.3 in, 1325-1430 mm |
Engine
| Number Of Cylinders | 4 |
| Engine Make | KUBOTA |
| Engine Model | L5460HSTRC |
| Engine Type | E-TVCS, indirect injection, vertical, liquid-cooled 4-cycle diesel |
| Gross Power | 56 hp (41.8 kw) |
| Net Power | 54 hp (40.3 kw) |
| Pto Power | 46.5 hp (34.7 kw) |
| Rated Speed | 2600 rpm |
| Displacement | 148.5 cu in (2.5 L) |
| Aspiration | Natural with EGR |
| Bore | 3.5 in (87 mm) |
| Stroke | 4.1 in (102.4 mm) |
Operational
| Operating Weight | 4023.5 lb (1825 kg) |
| Fuel Capacity | 13.5 gal (51 L) |
| 3 Point Hitch Type | Category 1 & 2 |
| 3 Point Hitch Lift Capacity @ 24 Inches | 2976.3 lb (1350 kg) |
| Turning Radius | 9.2 ft in (2800 mm) |
| Tire Size Front - 2wd / 4wd | 9.5 - 16 |
| Rear Tires Size 2wd/4wd | 14.9 - 26 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 45 amps |
Power Take-Off(Pto)
| Mid- Pto | 1 speed: 2000 rpm |
| Rear Pto | 1 speed: 540 rpm |
| Power Take-Off(Pto) Type | Independent |
Transmission
| Brakes | Wet disc type |
| Steering | Hydrostatic power steering |
| Clutch, Wet/Dry | Dry type single stage |
| Transmission Type | HST Plus |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed | 16.9 mph (27.1 km/h) |
Hydraulic System
| Implement Pump Flow Ps | 9.4 gal/min (35.6 L/min) |
| Pump Flow Capacity | 4.7 gal/min (17.8 L/min) |
