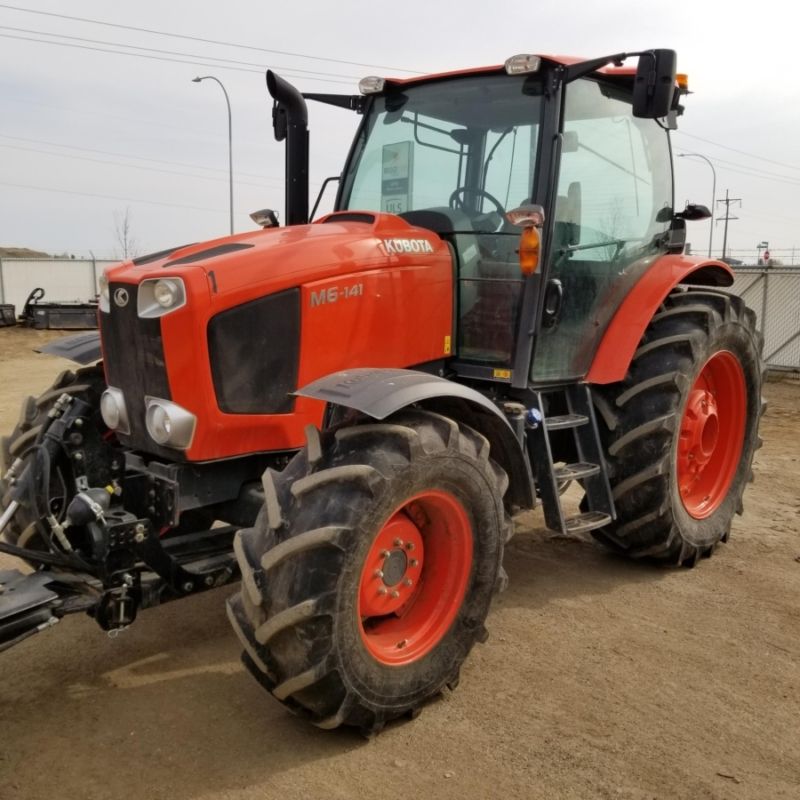

Kubota M6-141DTCC-F
Browse All Kubota or MFWD Tractor Models
Contents:
Dimensions
| Overall Length | 171.66 in (4360 mm) |
| Wheelbase | 8.83 ft in (2690 mm) |
| Overall Width | 7.16 ft in (2180 mm) |
| Ground Clearance | 22.25 in (565 mm) |
| Overall Height | 9.44 ft in (2875 mm) |
| Front Tread Range | 73.82 in (1875 mm) |
| Rear Tread Range | 82.29 in (2090 mm) |
| Turning Radius Without Brakes 1 | 13.78 ft in (4200 mm) |
Engine
| Battery | 12V, 160Ah at 20hours, 1090CCA |
| Number Of Cylinders | 4 |
| Engine Make | KUBOTA |
| Engine Model | V6108-TIEF4 |
| Engine Type | Direct Injection |
| Gross Power | 141.4 hp (105.5 kw) |
| Net Power | 133 hp (99.2 kw) |
| Air Cleaner | 10 Dry, dual-element |
| Pto Power | 114 hp (85.1 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 374 cu in (6.2 L) |
| Aspiration | Turbocharger with intercooler |
| Bore | 4.7 in (118 mm) |
| Stroke | 5.6 in (140 mm) |
| Alternator | 130 amps |
| Model Name | M6-141DTCC-F |
Capacities
| Diesel Exhaust Fluid (Def) Tank | 4.3 gal (16 L) |
| Fuel Tank | 50.2 gal (190 L) |
| Transmission | 4 gal (15 L) |
| Engine Oil | 3.9 gal (14.6 L) |
| Engine Coolant | 3.9 gal (14.6 L) |
Operational
| Operating Weight | 10946 lb (4965 kg) |
| Tires | Front - 14.9R24 , Rear - 18.4R38 |
| 3 Point Hitch Type | Category 2 |
| 3 Point Hitch Lift Capacity @ 24 Inches | 6834.4 lb (3100 kg) |
Power Take-Off(Pto)
| Pto Speed Rear | 540 rpm |
| Pto Speed Mid | 1000 rpm |
| Mid- Pto | 21 splines |
| Pto | Live-independent PTO |
| Rear Pto | 6 splines |
Transmission
| Brake Type | Hydraulically operated wet disc brakes |
| Max Speed | 24.3 mph (39.2 km/h) |
Hydraulic System
| System Pressure | 2842.8 psi (19600 kPa) |
| Hydraulic System | Electronic draft control |
| Pump Flow Capacity | 20.4 gal/min (77.2 L/min) |
