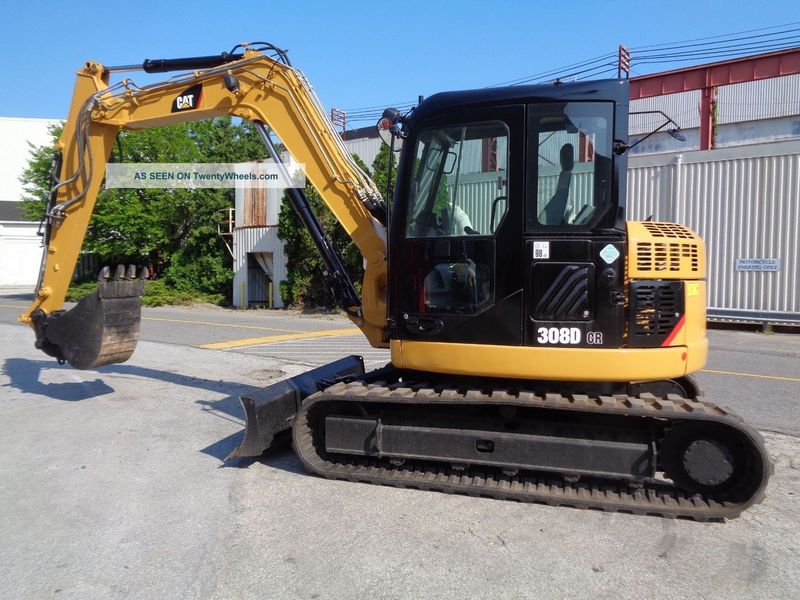

Caterpillar 308D CR
Browse All Caterpillar or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 19.07 ft in (5810 mm) |
| Shipping Height Of Unit | 8.5 ft in (2590 mm) |
| Max Cutting Height | 24.09 ft in (7340 mm) |
| Max Loading Height | 17.43 ft in (5310 mm) |
| Max Reach Along Ground | 20.31 ft in (6190 mm) |
| Max Vertical Wall Digging Depth | 11.98 ft in (3650 mm) |
| Max Digging Depth | 13.42 ft in (4090 mm) |
| Boom/Stick Option (Hex) 1 | Standard Stick |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 19.13 ft in (5830 mm) |
| Shipping Height Of Unit | 8.5 ft in (2590 mm) |
| Max Cutting Height | 25.46 ft in (7760 mm) |
| Max Loading Height | 18.8 ft in (5730 mm) |
| Max Reach Along Ground | 22.02 ft in (6710 mm) |
| Max Digging Depth | 15.2 ft in (4630 mm) |
| Max Vertical Wall Digging Depth | 13.65 ft in (4160 mm) |
| Boom/Stick Option (Hex) 2 | Long Stick |
Dimensions
| Width To Outside Of Tracks | 7.62 ft in (2320 mm) |
| Length Of Track On Ground | 7.49 ft in (2280 mm) |
| Ground Clearance | 1.27 ft in (385 mm) |
| Height To Top Of Cab | 8.5 ft in (2590 mm) |
| Tail Swing Radius | 4.24 ft in (1290 mm) |
| Removal Counterweight Clearance | 2.42 ft in (735 mm) |
Undercarriage
| Shoe Size | 17.72 in (450 mm) |
| Track Gauge | 6.14 ft in (1870 mm) |
| Max Travel Speed | 3.11 mph (5 km/h) |
Engine
| Engine Make | 2251 |
| Engine Model | 4M40 TL |
| Gross Power | 57.7 hp (43 kw) |
| Net Power | 55.7 hp (41.5 kw) |
| Displacement | 172.7 cu in (2.9 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 17306.3 lb (7850 kg) |
| Fuel Capacity | 33.1 gal (125 L) |
| Cooling System Fluid Capacity | 4.2 gal (15.7 L) |
| Hydraulic System Fluid Capacity | 24.9 gal (94 L) |
| Engine Oil Capacity | 3.4 gal (12.5 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 35 amps |
| Hydraulic System Relief Valve Pressure | 4641 psi (31998.6 kPa) |
| Hydraulic Pump Flow Capacity | 71.9 gal/min (272 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
