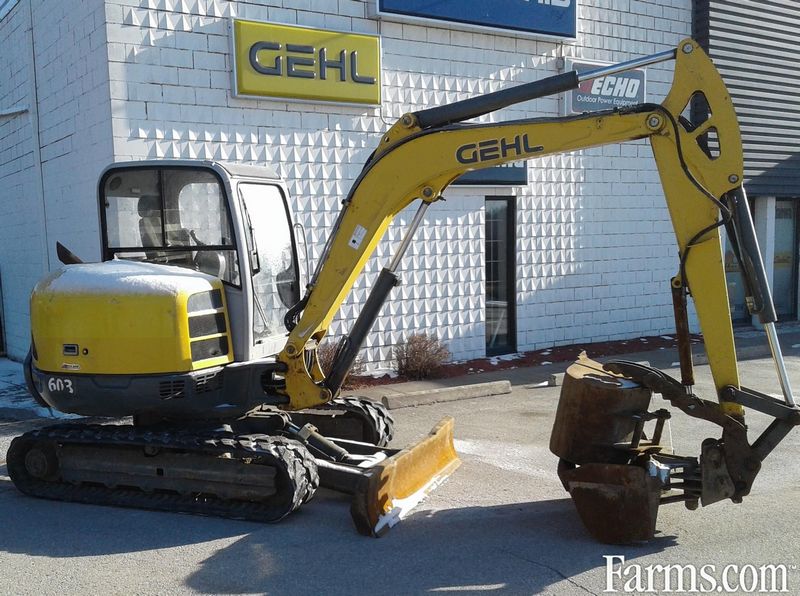

Gehl 603
Browse All Gehl or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 19.03 ft in (5800 mm) |
| Max Cutting Height | 18.57 ft in (5660 mm) |
| Max Loading Height | 12.21 ft in (3720 mm) |
| Max Reach Along Ground | 19.79 ft in (6030 mm) |
| Max Vertical Wall Digging Depth | 9.37 ft in (2855 mm) |
| Max Digging Depth | 12.62 ft in (3845 mm) |
| Boom/Stick Option (Hex) 1 | Standard arm 5'6" (1685mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 19.2 ft in (5850 mm) |
| Max Loading Height | 13.11 ft in (3995 mm) |
| Max Reach Along Ground | 20.38 ft in (6210 mm) |
| Max Digging Depth | 13.59 ft in (4140 mm) |
| Max Vertical Wall Digging Depth | 10.29 ft in (3135 mm) |
| Boom/Stick Option (Hex) 2 | Long arm 6'6" (1985mm) |
Dimensions
| Length Of Track On Ground | 6.57 ft in (2000 mm) |
| Ground Clearance | 0.96 ft in (290 mm) |
| Height To Top Of Cab | 8.44 ft in (2570 mm) |
| Tail Swing Radius | 3.25 ft in (990 mm) |
Undercarriage
| Shoe Size | 15.75 in (400 mm) |
| Max Travel Speed | 2.92 mph (4.7 km/h) |
| Number Of Track Rollers Per Side | 5 |
| Ground Pressure | 4.7 psi (32.41 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2291 |
| Engine Model | Yanmar 4TNV98-VNS, A TIER II |
| Gross Power | 69 hp (51.5 kw) |
| Net Power | 57 hp (42.6 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 202 cu in (3.4 L) |
Operational
| Operating Weight | 12566 lb (5699.9 kg) |
| Fuel Capacity | 22 gal (83 L) |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 21.2 gal (80 L) |
| Alternator Supplied Amperage | 88 amps |
| Hydraulic System Relief Valve Pressure | 3553 psi (24497.1 kPa) |
| Hydraulic Pump Flow Capacity | 49.2 gal/min (186.3 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.4 yd3 (0.3 m3) |
