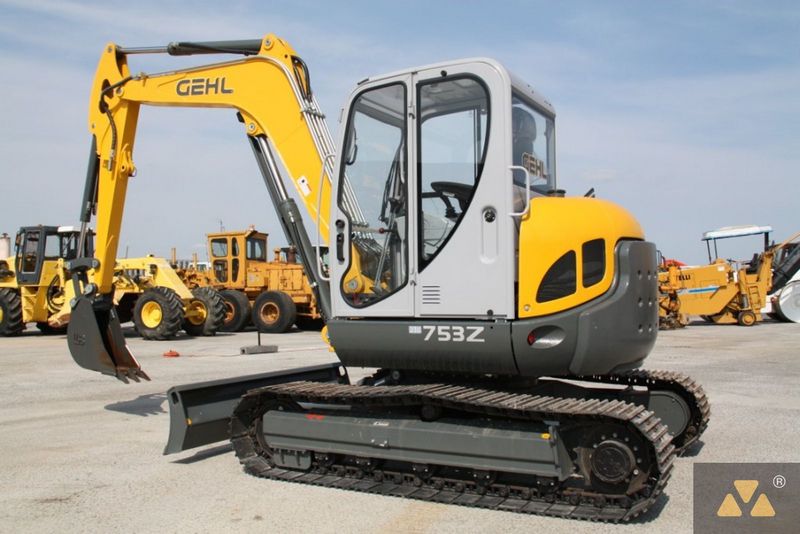

Gehl 753Z
Browse All Gehl or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 21.26 ft in (6480 mm) |
| Max Cutting Height | 21.76 ft in (6630 mm) |
| Max Loading Height | 14.77 ft in (4500 mm) |
| Max Reach Along Ground | 23.2 ft in (7070 mm) |
| Max Vertical Wall Digging Depth | 11.16 ft in (3400 mm) |
| Max Digging Depth | 13.23 ft in (4030 mm) |
| Boom/Stick Option (Hex) 1 | Standard arm 5'7" (1700mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 22.38 ft in (6820 mm) |
| Max Loading Height | 15.39 ft in (4690 mm) |
| Max Reach Along Ground | 24.12 ft in (7350 mm) |
| Max Digging Depth | 14.18 ft in (4320 mm) |
| Max Vertical Wall Digging Depth | 12.14 ft in (3700 mm) |
| Boom/Stick Option (Hex) 2 | Long arm 6'7" (2000mm) |
Dimensions
| Length Of Track On Ground | 7.44 ft in (2265 mm) |
| Ground Clearance | 1.12 ft in (340 mm) |
| Height To Top Of Cab | 8.75 ft in (2665 mm) |
| Tail Swing Radius | 3.78 ft in (1150 mm) |
Undercarriage
| Shoe Size | 17.72 in (450 mm) |
| Max Travel Speed | 3.1 mph (4.99 km/h) |
| Number Of Track Rollers Per Side | 5 |
| Ground Pressure | 5 psi (34.48 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2291 |
| Engine Model | Yanmar 4TNV98-VNS, A TIER II |
| Gross Power | 69 hp (51.5 kw) |
| Net Power | 57 hp (42.6 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 202 cu in (3.4 L) |
Operational
| Operating Weight | 16975 lb (7699.8 kg) |
| Fuel Capacity | 24.6 gal (93 L) |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 26.2 gal (99 L) |
| Alternator Supplied Amperage | 88 amps |
| Hydraulic System Relief Valve Pressure | 3771 psi (26000.2 kPa) |
| Hydraulic Pump Flow Capacity | 55.4 gal/min (209.8 L/min) |
Swing Mechanism
| Swing Speed | 8.7 rpm |
Buckets
| Reference Bucket Capacity | 0.3 yd3 (0.2 m3) |
| Minimum Bucket Capacity | 0.2 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.5 yd3 (0.4 m3) |
