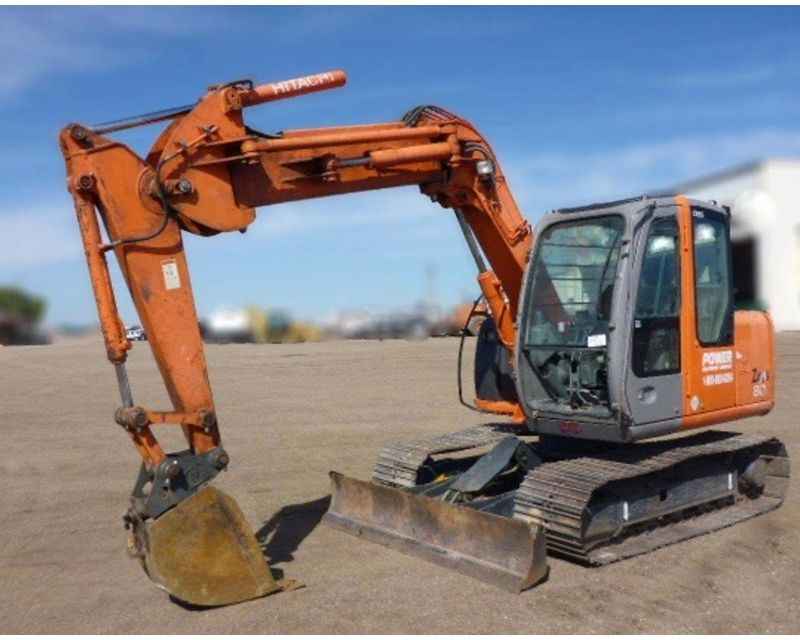

Hitachi ZX70-3
Browse All Hitachi or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 19.95 ft in (6080 mm) |
| Shipping Height Of Unit | 8.54 ft in (2600 mm) |
| Max Loading Height | 16.61 ft in (5060 mm) |
| Max Reach Along Ground | 20.25 ft in (6170 mm) |
| Max Vertical Wall Digging Depth | 12.24 ft in (3730 mm) |
| Max Digging Depth | 13.69 ft in (4170 mm) |
Dimensions
| Width To Outside Of Tracks | 7.62 ft in (2320 mm) |
| Length Of Track On Ground | 7.03 ft in (2140 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Tail Swing Radius | 5.75 ft in (1750 mm) |
Undercarriage
| Shoe Size | 17.72 in (450 mm) |
| Max Travel Speed | 3.3 mph (5.3 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | AU-4LE2X |
| Gross Power | 54.4 hp (40.5 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 134.3 cu in (2.2 L) |
Operational
| Operating Weight | 15432.4 lb (7000 kg) |
| Hydraulic System Relief Valve Pressure | 3843.6 psi (26500 kPa) |
| Hydraulic Pump Flow Capacity | 38.1 gal/min (144 L/min) |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
