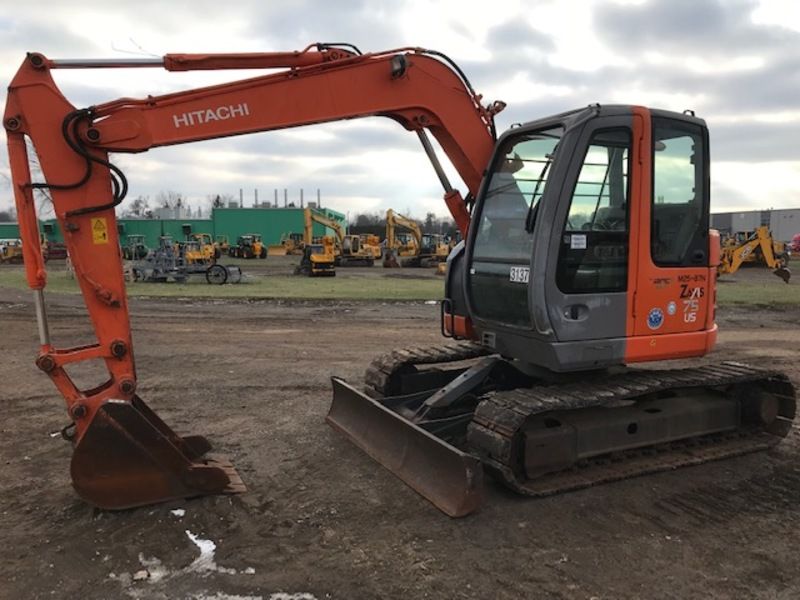

Hitachi ZX75US-A
Browse All Hitachi or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 19.26 ft in (5870 mm) |
| Shipping Height Of Unit | 8.83 ft in (2690 mm) |
| Max Cutting Height | 23.66 ft in (7210 mm) |
| Max Loading Height | 16.8 ft in (5120 mm) |
| Max Reach Along Ground | 20.54 ft in (6260 mm) |
| Max Vertical Wall Digging Depth | 12.05 ft in (3670 mm) |
| Max Digging Depth | 13.49 ft in (4110 mm) |
| Boom/Stick Option (Hex) 1 | Boom 12'2" (3720mm)/Stick 5'4" (1620mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 19.53 ft in (5950 mm) |
| Shipping Height Of Unit | 9.29 ft in (2830 mm) |
| Max Cutting Height | 24.97 ft in (7610 mm) |
| Max Loading Height | 18.08 ft in (5510 mm) |
| Max Reach Along Ground | 22.18 ft in (6760 mm) |
| Max Digging Depth | 15.13 ft in (4610 mm) |
| Max Vertical Wall Digging Depth | 13.82 ft in (4210 mm) |
| Boom/Stick Option (Hex) 2 | Boom 12'2" (3720mm)/Stick 6'11" (2120mm) |
Dimensions
| Width To Outside Of Tracks | 7.62 ft in (2320 mm) |
| Length Of Track On Ground | 7.52 ft in (2290 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Height To Top Of Cab | 8.83 ft in (2690 mm) |
| Tail Swing Radius | 3.97 ft in (1210 mm) |
| Removal Counterweight Clearance | 2.5 ft in (760 mm) |
Undercarriage
| Shoe Size | 17.72 in (450 mm) |
| Track Gauge | 6.14 ft in (1870 mm) |
| Ground Pressure | 4.36 psi (30 kPa) |
| Number Of Shoes Per Side | 40 |
| Max Travel Speed | 3.11 mph (5 km/h) |
| Number Of Track Rollers Per Side | 5 |
| Number Of Carrier Rollers Per Side | 1 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | CC-4JG1 |
| Net Power | 54 hp (40 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 186.7 cu in (3.1 L) |
| Max Torque | 144.6 lb ft (196 Nm) |
| Torque Measured @ | 1800 rpm |
Operational
| Operating Weight | 15652.9 lb (7100 kg) |
| Fuel Capacity | 31.7 gal (120 L) |
| Cooling System Fluid Capacity | 2.4 gal (9.2 L) |
| Hydraulic System Fluid Capacity | 23.8 gal (90 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 3.2 gal (12 L) |
| Alternator Supplied Amperage | 30 amps |
| Hydraulic System Relief Valve Pressure | 4550 psi (31371.2 kPa) |
| Hydraulic Pump Flow Capacity | 36.7 gal/min (138.6 L/min) |
Swing Mechanism
| Swing Speed | 11 rpm |
