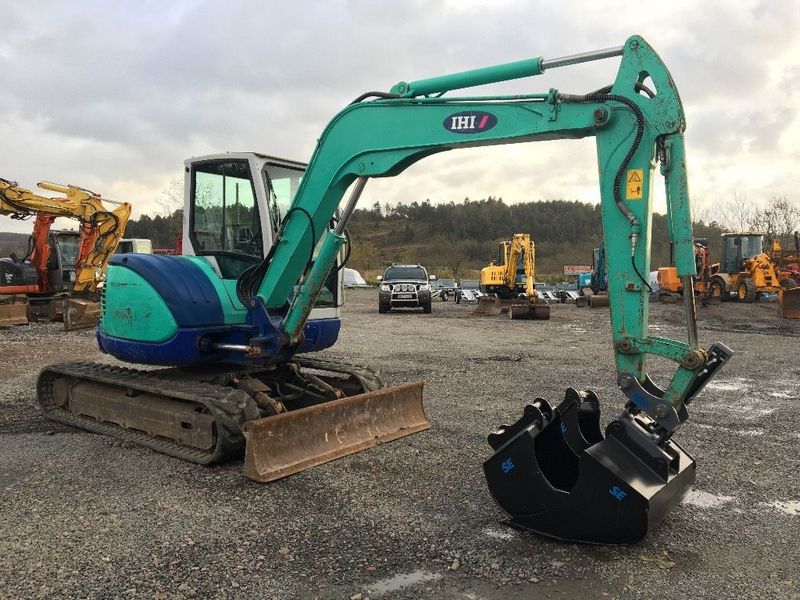

IHI 65NX
Browse All IHI or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 19.25 ft in (5867.4 mm) |
| Shipping Height Of Unit | 8.5 ft in (2590.8 mm) |
| Max Cutting Height | 19.83 ft in (6044.19 mm) |
| Max Loading Height | 13.83 ft in (4215.39 mm) |
| Max Vertical Wall Digging Depth | 9.83 ft in (2996.19 mm) |
| Max Digging Depth | 12.83 ft in (3910.59 mm) |
Dimensions
| Width To Outside Of Tracks | 6.92 ft in (2109.22 mm) |
| Height To Top Of Cab | 8.5 ft in (2590.8 mm) |
| Tail Swing Radius | 3.42 ft in (1042.42 mm) |
| Removal Counterweight Clearance | 2.25 ft in (685.8 mm) |
Undercarriage
| Shoe Size | 16 in (406.4 mm) |
| Track Gauge | 5.58 ft in (1700.79 mm) |
| Ground Pressure | 4.41 psi (30.34 kPa) |
| Max Travel Speed | 3.3 mph (5.32 km/h) |
Engine
| Engine Make | 2348 |
| Engine Model | 4TNV94L |
| Gross Power | 55 hp (41.1 kw) |
Operational
| Operating Weight | 14400 lb (6531.8 kg) |
| Fuel Capacity | 22.5 gal (85.2 L) |
| Hydraulic System Relief Valve Pressure | 3553 psi (24497.1 kPa) |
| Hydraulic Pump Flow Capacity | 39.6 gal/min (150 L/min) |
Swing Mechanism
| Swing Speed | 9.5 rpm |
Buckets
| Reference Bucket Capacity | 0.3 yd3 (0.2 m3) |
