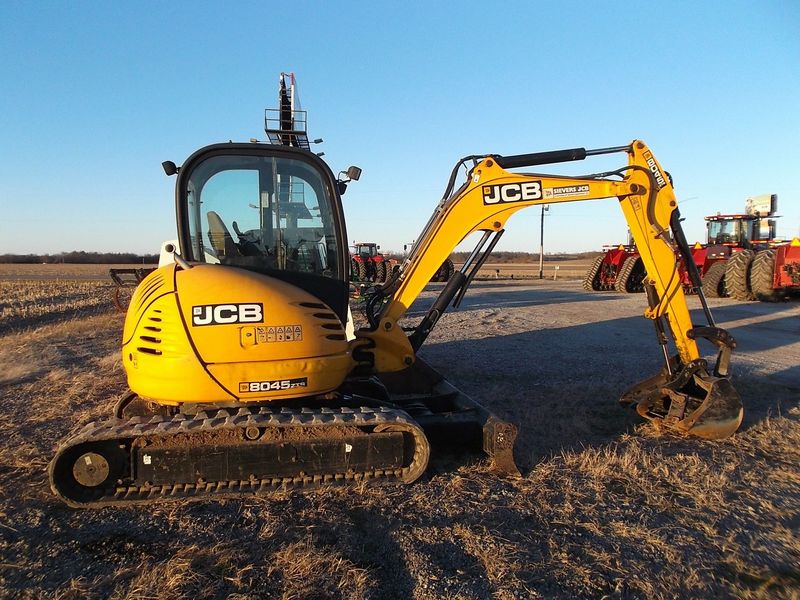

JCB 8045 ZTS
Browse All JCB or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 19.68 ft in (6006 mm) |
| Shipping Height Of Unit | 15.08 ft in (4602 mm) |
| Max Cutting Height | 18 ft in (5491 mm) |
| Max Loading Height | 13.08 ft in (3977 mm) |
| Max Reach Along Ground | 19.18 ft in (5844 mm) |
| Max Vertical Wall Digging Depth | 8.33 ft in (2539 mm) |
| Max Digging Depth | 11.56 ft in (3542 mm) |
| Boom/Stick Option (Hex) 1 | Arm Length 5ft.8in. (1725mm) |
Dimensions
| Width To Outside Of Tracks | 6.5 ft in (1980 mm) |
| Length Of Track On Ground | 6.53 ft in (1990 mm) |
| Ground Clearance | 1.17 ft in (340 mm) |
| Height To Top Of Cab | 8.42 ft in (2563 mm) |
| Tail Swing Radius | 3.25 ft in (985 mm) |
| Removal Counterweight Clearance | 2.25 ft in (690 mm) |
Undercarriage
| Shoe Size | 16 in (400 mm) |
| Track Gauge | 5.17 ft in (1580 mm) |
| Ground Pressure | 4.27 psi (29.45 kPa) |
| Number Of Track Rollers Per Side | 5 |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Engine Make | 2351 |
| Engine Model | 404-22C |
| Gross Power | 46.4 hp (34.1 kw) |
| Net Power | 45 hp (33.1 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 134.9 cu in (2.3 L) |
| Max Torque | 101.3 lb ft (137.3 Nm) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 10472 lb (4750 kg) |
| Fuel Capacity | 18 gal (68 L) |
| Cooling System Fluid Capacity | 3.6 gal (13.5 L) |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 25.9 gal (98 L) |
| Engine Oil Capacity | 3.8 gal (3.6 L) |
| Alternator Supplied Amperage | 65 amps |
| Hydraulic System Relief Valve Pressure | 3626 psi (25000.4 kPa) |
| Hydraulic Pump Flow Capacity | 23.8 gal/min (90 L/min) |
Swing Mechanism
| Swing Torque | 12319.5 lb ft (54.8 Nm) |
| Swing Speed | 10 rpm |
