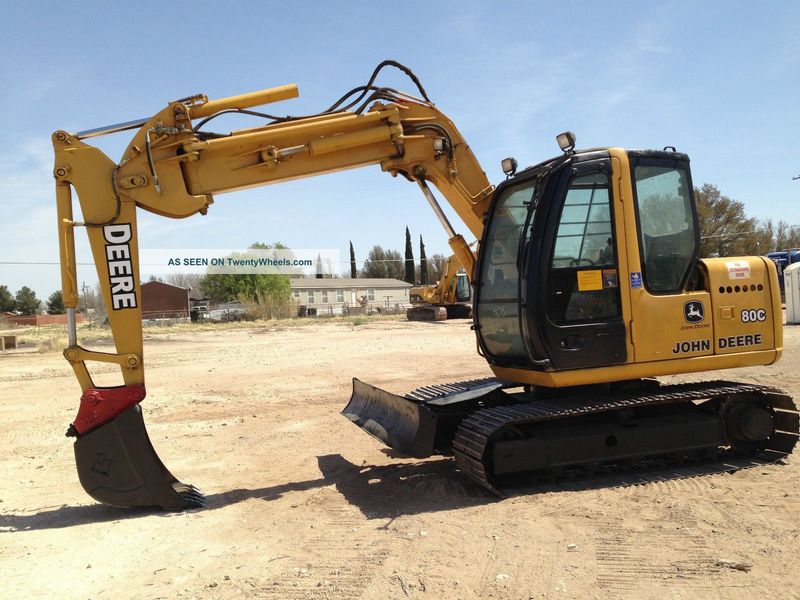

John Deere 80C
Browse All John Deere or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 19.95 ft in (6080 mm) |
| Shipping Height Of Unit | 8.54 ft in (2600 mm) |
| Max Cutting Height | 23.27 ft in (7090 mm) |
| Max Loading Height | 16.84 ft in (5130 mm) |
| Max Reach Along Ground | 20.02 ft in (6100 mm) |
| Max Vertical Wall Digging Depth | 12.24 ft in (3730 mm) |
| Max Digging Depth | 13.42 ft in (4090 mm) |
| Boom/Stick Option (Hex) 1 | 5'ft 4in (1620mm) stick |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 20.08 ft in (6120 mm) |
| Shipping Height Of Unit | 9.45 ft in (2880 mm) |
| Max Cutting Height | 24.58 ft in (7490 mm) |
| Max Loading Height | 18.15 ft in (5530 mm) |
| Max Reach Along Ground | 21.66 ft in (6600 mm) |
| Max Digging Depth | 15.1 ft in (4600 mm) |
| Max Vertical Wall Digging Depth | 14.05 ft in (4280 mm) |
| Boom/Stick Option (Hex) 2 | 6ft 11in (2120mm) stick |
Dimensions
| Width To Outside Of Tracks | 7.71 ft in (2350 mm) |
| Length Of Track On Ground | 7.03 ft in (2140 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Height To Top Of Cab | 8.54 ft in (2600 mm) |
| Tail Swing Radius | 5.75 ft in (1750 mm) |
| Removal Counterweight Clearance | 2.5 ft in (760 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Track Gauge | 5.75 ft in (1750 mm) |
| Drawbar Pull | 12350 lb (54.94 kN) |
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Shoes Per Side | 38 |
| Number Of Track Rollers Per Side | 5 |
| Ground Pressure | 3.63 psi (25.03 kPa) |
| Max Travel Speed | 3.1 mph (4.99 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | CC-4JG1 |
| Net Power | 52 hp (38.8 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 186.7 cu in (3.1 L) |
| Max Torque | 142 lb ft (192.6 Nm) |
| Torque Measured @ | 1700 rpm |
| Aspiration | naturally aspirated |
Operational
| Operating Weight | 15906.4 lb (7215 kg) |
| Fuel Capacity | 36 gal (136 L) |
| Cooling System Fluid Capacity | 1.6 gal (5.8 L) |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 26.5 gal (100 L) |
| Engine Oil Capacity | 2.7 gal (9.9 L) |
| Alternator Supplied Amperage | 30 amps |
| Hydraulic System Relief Valve Pressure | 4550 psi (31371.2 kPa) |
| Hydraulic Pump Flow Capacity | 33.3 gal/min (126 L/min) |
Swing Mechanism
| Swing Torque | 10207.9 lb ft (13840 Nm) |
| Swing Speed | 11.3 rpm |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Minimum Bucket Capacity | 0.3 yd3 (0.2 m3) |
| Maximum Bucket Capacity | 1 yd3 (0.8 m3) |
