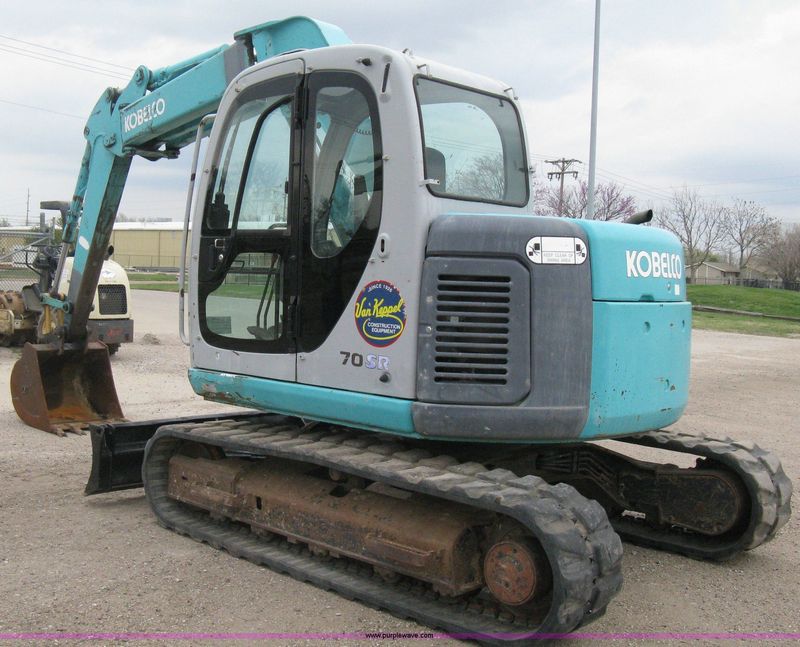

Kobelco 70SR
Browse All Kobelco or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 19 ft in (5790 mm) |
| Shipping Height Of Unit | 8.54 ft in (2600 mm) |
| Max Cutting Height | 24.61 ft in (7500 mm) |
| Max Loading Height | 17.82 ft in (5430 mm) |
| Max Reach Along Ground | 21.56 ft in (6570 mm) |
| Max Vertical Wall Digging Depth | 13.03 ft in (3970 mm) |
| Max Digging Depth | 14.83 ft in (4520 mm) |
| Boom/Stick Option (Hex) 1 | stick 6'9" 2070mm |
Dimensions
| Width To Outside Of Tracks | 8.11 ft in (2470 mm) |
| Length Of Track On Ground | 7.35 ft in (2240 mm) |
| Ground Clearance | 1.25 ft in (380 mm) |
| Height To Top Of Cab | 8.54 ft in (2600 mm) |
| Tail Swing Radius | 3.81 ft in (1160 mm) |
| Removal Counterweight Clearance | 2.47 ft in (750 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Track Gauge | 6.14 ft in (1870 mm) |
| Drawbar Pull | 15500 lb (68.95 kN) |
| Ground Pressure | 3.4 psi (23.45 kPa) |
| Max Travel Speed | 3.4 mph (5.48 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | A-4JB1 |
| Net Power | 54 hp (40.3 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 169 cu in (2.8 L) |
Operational
| Operating Weight | 16400 lb (7439 kg) |
| Fuel Capacity | 22.5 gal (85.2 L) |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 24 gal (90.9 L) |
| Alternator Supplied Amperage | 30 amps |
| Hydraulic System Relief Valve Pressure | 4250 psi (29302.7 kPa) |
| Hydraulic Pump Flow Capacity | 53 gal/min (200.5 L/min) |
Swing Mechanism
| Swing Speed | 12.5 rpm |
| Swing Torque | 14060 lb ft (19062.9 Nm) |
Buckets
| Reference Bucket Capacity | 0.3 yd3 (0.3 m3) |
| Minimum Bucket Capacity | 0.3 yd3 (0.2 m3) |
| Maximum Bucket Capacity | 0.6 yd3 (0.5 m3) |
