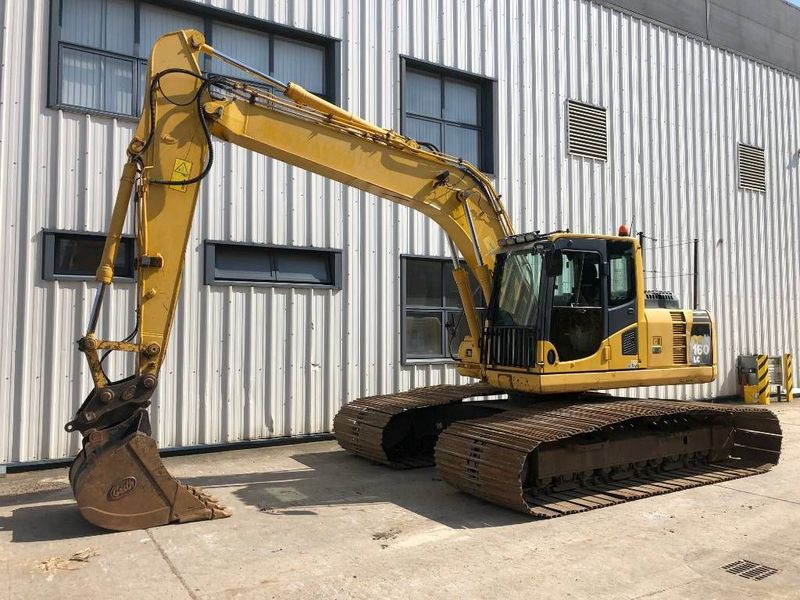

Komatsu PC160LC-8
Browse All Komatsu or Midi Excavator Models
Contents:
Dimensions
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 9.95 ft in (3030 mm) |
| Tail Swing Radius | 7.99 ft in (2435 mm) |
| Track Gauge | 6.53 ft in (1990 mm) |
| Removal Counterweight Clearance | 3.47 ft in (1055 mm) |
| Overall Height | 9.93 ft in (3025 mm) |
| Overall Length | 28.11 ft in (8565 mm) |
| Overall Track Width | 8.17 ft in (2490 mm) |
| Track Length On Ground | 10.41 ft in (3170 mm) |
Undercarriage
| Shoe Size | 19.69 in (500 mm) |
| Shoe Type | triple grouser |
| Number Of Track Rollers Per Side | 7 |
| Track Adjuster | Hydraulic |
| Track Frame | Box-section |
| Number Of Shoes (Each Side) | 44 |
| Number Of Carrier Rollers Per Side | 2 |
| Seal Of Track | Sealed track |
| Centre Frame | X-frame |
Electrical System
| Alternator | 24V, 60 Ampere |
| Starter | 24V/4.5 kW |
| Batteries | standard, 2 x 12 V/64 Ah |
| Voltage Reducer | 24v to 12v, in cabin with socket |
Swing System
| Swing Reduction | Planetary gear |
| Swing Circle Lubrication | Grease-bathed |
| Driven By | Hydrostatic |
| Swing Lock | Mechanical disc brake |
Engine
| Horsepower, Gross-Sae J1995 | 120.7 hp (90 kw) |
| Horsepower, Net-Iso 9249 | 115.4 hp (86 kw) |
| Horsepower, Net-Sae J1349 | 115.4 hp (86 kw) |
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | SAA4D107E-1 |
| Engine Type | Water-cooled, 4-cycle, direct injection |
| Governor | All-speed control, electronic |
| Power Measured @ | 2200 rpm |
| Displacement | 272.2 cu in (4.5 L) |
| Aspiration | Turbocharged, aftercooled |
| Bore | 4.3 in (107 mm) |
| Stroke | 4.9 in (124 mm) |
| Fan Drive Type | Mechanical |
Driveline
| Drawbar Pull, Maximum (Kg) | 15950 |
| Gradeability | 70 % |
| Travel Speed | 3.4/5.5 |
Capacities
| Coolant (Engine) | 3.7 gal (13.9 L) |
| Swing Drive | 0.7 gal (2.5 L) |
| Fuel Tank | 65.3 gal (247 L) |
| Final Drive | 0.6 gal (2.1 L) |
| Engine Oil | 3.1 gal (11.5 L) |
| Hydraulic | 23.8 gal (90 L) |
Operational
| Boom Size | 18.1 ft in (5.6 m) |
| Boom Type | Standard |
| Arm Size | 8.6 ft in (2.7 m) |
| Swing Radius | 8 ft in (2435 mm) |
| Arm Type | Standard |
| Bucket Size – Kga Standard Gp | 1.1 yd3 (0.8 m3) |
| Arm Crowd Force – Iso | 8800 |
| Digging Reach – Maximum | 29.4 ft in (8960 mm) |
| Digging Depth – Maximum | 19.6 ft in (5960 mm) |
| Maximum Reach @ Ground Level | 28.9 ft in (8800 mm) |
| Bucket Crowd Force – Iso | 12500 |
Weights
| Operating Weight | 36773.2 lb (16680 kg) |
| Bucket Weight - Kga Gp | 1245.7 lb (565 kg) |
| Quick Hitch Weight – Kga | 674.7 lb (306 kg) |
Hydraulic System
| Hydraulic System Type | HydrauMind System |
| Selectable Work Modes | 5 |
| Economy Sub-Mode Selections | 4 |
| Main Pump Type | Variable displacement, axial piston |
| Maximum Flow Rate | 82.5 gal/min (312 L/min) |
| Hydraulic Motor (Travel) | 2 x axial piston motor with parking brake |
| Hydraulic Motor (Swing) | 1 x axial piston motor with swing holding brake |
Brakes
| Parking Brake | Mechanical disc brake |
| Service Brake | Hydraulic lock |
