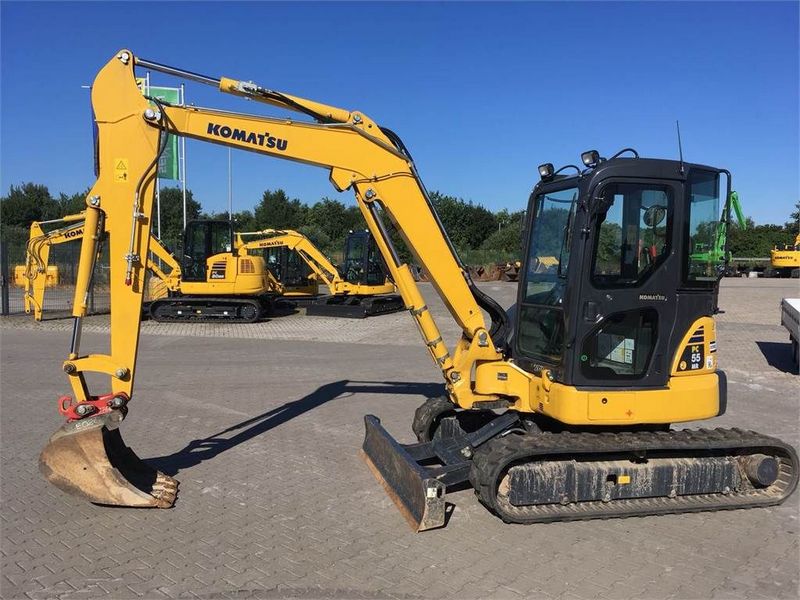

Komatsu PC55MR-3
Browse All Komatsu or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 18.21 ft in (5550 mm) |
| Shipping Height Of Unit | 8.37 ft in (2550 mm) |
| Max Cutting Height | 19.51 ft in (5945 mm) |
| Max Loading Height | 13.88 ft in (4230 mm) |
| Max Reach Along Ground | 19.92 ft in (6070 mm) |
| Max Vertical Wall Digging Depth | 9.91 ft in (3020 mm) |
| Max Digging Depth | 12.47 ft in (3800 mm) |
| Boom/Stick Option (Hex) 1 | Arm 1640mm 5'4" |
Dimensions
| Width To Outside Of Tracks | 6.44 ft in (1960 mm) |
| Height To Top Of Cab | 8.37 ft in (2550 mm) |
| Tail Swing Radius | 3.48 ft in (1060 mm) |
Undercarriage
| Shoe Size | 15.75 in (400 mm) |
| Track Gauge | 5.12 ft in (1560 mm) |
| Drawbar Pull | 8770 lb (39.02 kN) |
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Track Rollers Per Side | 4 |
| Ground Pressure | 4.41 psi (30.34 kPa) |
| Max Travel Speed | 2.86 mph (4.6 km/h) |
Engine
| Engine Make | 2238 |
| Engine Model | 4D88E-6 |
| Net Power | 38.2 hp (28.5 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 134 cu in (2.2 L) |
Operational
| Operating Weight | 11375.9 lb (5160 kg) |
| Fuel Capacity | 17.2 gal (65 L) |
| Cooling System Fluid Capacity | 2.3 gal (8.5 L) |
| Hydraulic System Fluid Capacity | 5.3 gal (20 L) |
| Engine Oil Capacity | 2 gal (7.5 L) |
| Operational Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 3840 psi (26475.9 kPa) |
| Hydraulic Pump Flow Capacity | 37.2 gal/min (140.8 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
