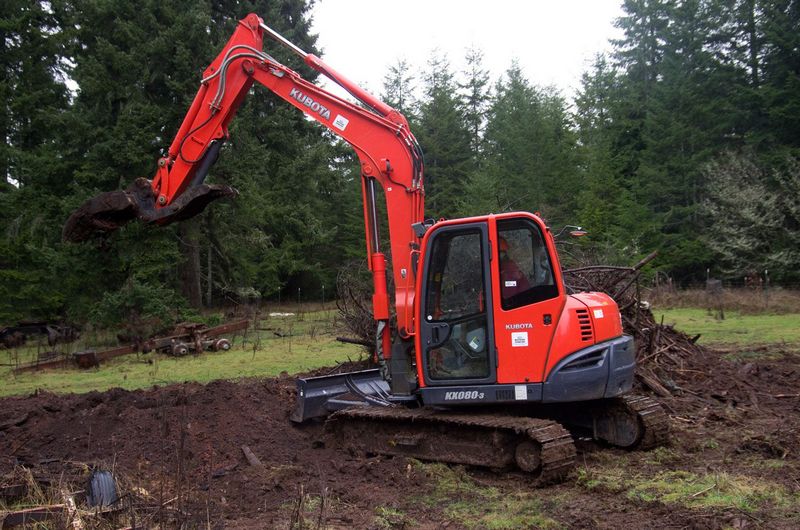

Kubota KX080-3
Browse All Kubota or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 21.17 ft in (6450 mm) |
| Shipping Height Of Unit | 8.34 ft in (2540 mm) |
| Max Loading Height | 17.23 ft in (5250 mm) |
| Max Reach Along Ground | 23.53 ft in (7170 mm) |
| Max Vertical Wall Digging Depth | 12.64 ft in (3850 mm) |
| Max Digging Depth | 15.1 ft in (4600 mm) |
Dimensions
| Width To Outside Of Tracks | 7.22 ft in (2200 mm) |
| Length Of Track On Ground | 9.52 ft in (2900 mm) |
| Ground Clearance | 1.28 ft in (390 mm) |
| Tail Swing Radius | 4.79 ft in (1460 mm) |
Undercarriage
| Shoe Size | 17.72 in (450 mm) |
| Max Travel Speed | 3.17 mph (5.1 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2334 |
| Engine Model | V3800-DI |
| Gross Power | 64.2 hp (47.8 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 231.9 cu in (3.8 L) |
Operational
| Operating Weight | 18364.6 lb (8330 kg) |
| Hydraulic System Relief Valve Pressure | 4061.1 psi (28000 kPa) |
| Hydraulic Pump Flow Capacity | 38.1 gal/min (144 L/min) |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
