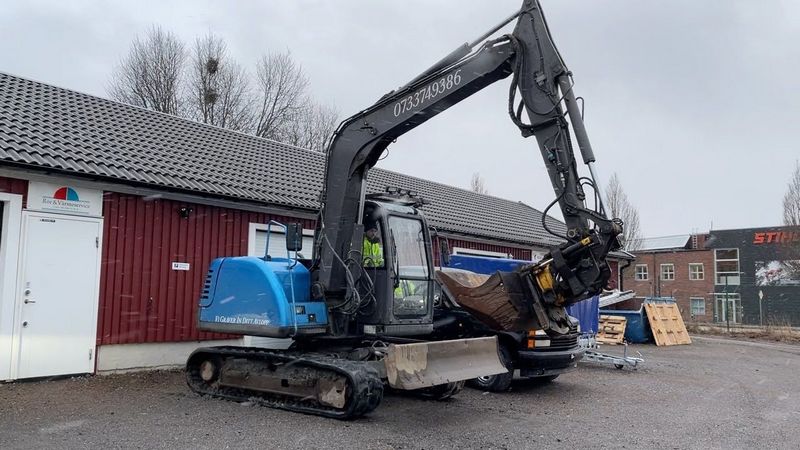

LiuGong CLG908C
Browse All LiuGong or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 20.12 ft in (6130 mm) |
| Shipping Height Of Unit | 8.54 ft in (2600 mm) |
| Max Loading Height | 16.67 ft in (5080 mm) |
| Max Reach Along Ground | 20.92 ft in (6375 mm) |
| Max Vertical Wall Digging Depth | 10.6 ft in (3230 mm) |
| Max Digging Depth | 13.62 ft in (4150 mm) |
Dimensions
| Width To Outside Of Tracks | 7.22 ft in (2200 mm) |
| Length Of Track On Ground | 7.32 ft in (2230 mm) |
| Ground Clearance | 1.25 ft in (380 mm) |
| Tail Swing Radius | 5.75 ft in (1750 mm) |
Undercarriage
| Shoe Size | 17.72 in (450 mm) |
| Max Travel Speed | 2.61 mph (4.2 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | B3.3 |
| Gross Power | 80.5 hp (60 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 201.4 cu in (3.3 L) |
Operational
| Operating Weight | 16975.6 lb (7700 kg) |
| Hydraulic System Relief Valve Pressure | 4061.1 psi (28000 kPa) |
| Hydraulic Pump Flow Capacity | 45 gal/min (170 L/min) |
Buckets
| Reference Bucket Capacity | 0.5 yd3 (0.4 m3) |
