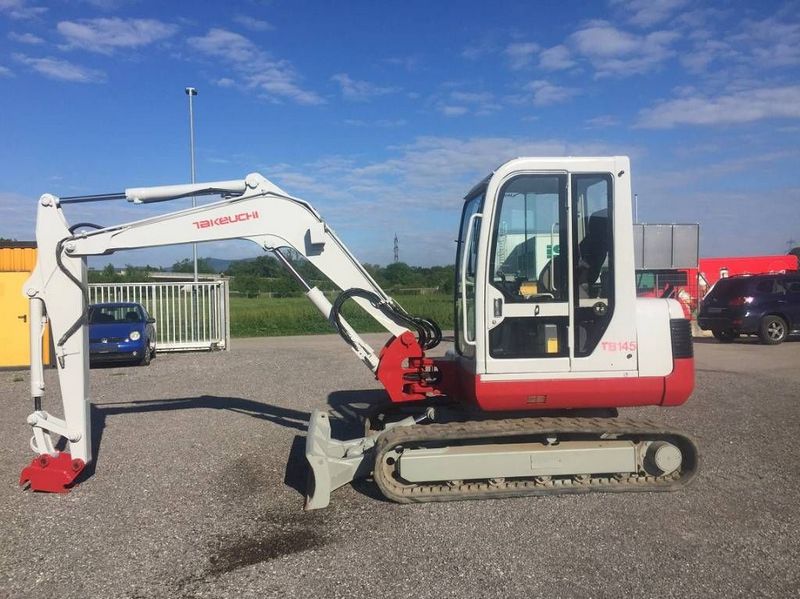

Takeuchi TB145
Browse All Takeuchi or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 18.5 ft in (5638.8 mm) |
| Max Loading Height | 13.67 ft in (4166.62 mm) |
| Max Reach Along Ground | 19.75 ft in (6019.8 mm) |
| Max Vertical Wall Digging Depth | 10 ft in (3048 mm) |
| Max Digging Depth | 12.5 ft in (3810 mm) |
Dimensions
| Width To Outside Of Tracks | 6 ft in (1828.8 mm) |
| Length Of Track On Ground | 6.5 ft in (1981.2 mm) |
| Ground Clearance | 1.08 ft in (329.19 mm) |
| Height To Top Of Cab | 8.42 ft in (2566.42 mm) |
| Tail Swing Radius | 4.83 ft in (1472.19 mm) |
Undercarriage
| Shoe Size | 15.7 in (398.78 mm) |
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Track Rollers Per Side | 5 |
| Max Travel Speed | 3.1 mph (4.99 km/h) |
| Ground Pressure | 3.9 psi (26.89 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNV88-QTB |
| Gross Power | 37.5 hp (28 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 134 cu in (2.2 L) |
| Max Torque | 107 lb ft (145.1 Nm) |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 10761 lb (4881.2 kg) |
| Fuel Capacity | 19.3 gal (73.1 L) |
| Cooling System Fluid Capacity | 1.8 gal (6.8 L) |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 30.4 gal (115.1 L) |
| Engine Oil Capacity | 2.3 gal (8.7 L) |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 3000 psi (20684.3 kPa) |
| Hydraulic Pump Flow Capacity | 29.6 gal/min (112.1 L/min) |
Swing Mechanism
| Swing Speed | 9.9 rpm |
