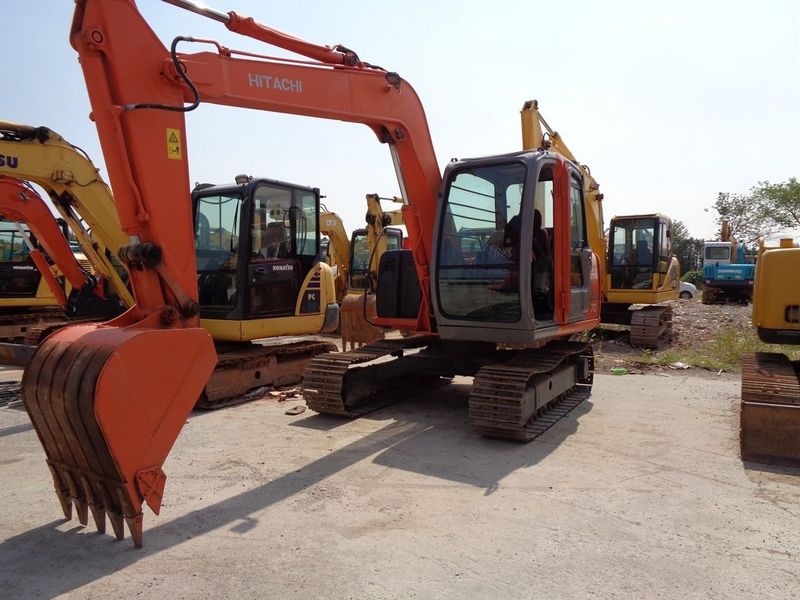

Tata Hitachi ZAXIS70LC
Browse All Tata Hitachi or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 23.46 ft in (7150 mm) |
| Max Loading Height | 16.61 ft in (5060 mm) |
| Max Reach Along Ground | 20.25 ft in (6170 mm) |
| Max Vertical Wall Digging Depth | 12.24 ft in (3730 mm) |
| Max Digging Depth | 13.69 ft in (4170 mm) |
| Boom/Stick Option (Hex) 1 | Boom 12'2" (3720mm)/Stick 5'4" (1620mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 24.78 ft in (7550 mm) |
| Max Loading Height | 17.89 ft in (5450 mm) |
| Max Reach Along Ground | 21.89 ft in (6670 mm) |
| Max Digging Depth | 15.33 ft in (4670 mm) |
| Max Vertical Wall Digging Depth | 14.05 ft in (4280 mm) |
| Boom/Stick Option (Hex) 2 | Boom 12'2" (3720mm)/Stick 6'11" (2120mm) |
Dimensions
| Width To Outside Of Tracks | 7.62 ft in (2320 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Height To Top Of Cab | 8.54 ft in (2600 mm) |
| Tail Swing Radius | 5.75 ft in (1750 mm) |
| Removal Counterweight Clearance | 2.5 ft in (760 mm) |
Undercarriage
| Shoe Size | 17.72 in (450 mm) |
| Track Gauge | 6.14 ft in (1870 mm) |
| Max Travel Speed | 3.11 mph (5 km/h) |
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Shoes Per Side | 40 |
| Number Of Track Rollers Per Side | 5 |
| Ground Pressure | 4.07 psi (28 kPa) |
Engine
| Engine Make | 2353 |
| Engine Model | CC-4JG1 |
| Net Power | 54.4 hp (40.5 kw) |
| Displacement | 186.7 cu in (3.1 L) |
| Max Torque | 141.7 lb ft (192 Nm) |
Operational
| Operating Weight | 14109.6 lb (6400 kg) |
| Fuel Capacity | 35.7 gal (135 L) |
| Cooling System Fluid Capacity | 2.6 gal (9.5 L) |
| Hydraulic System Fluid Capacity | 26.5 gal (100 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 3.2 gal (12 L) |
| Hydraulic System Relief Valve Pressure | 4554.2 psi (31400 kPa) |
| Hydraulic Pump Flow Capacity | 47.2 gal/min (178.5 L/min) |
Swing Mechanism
| Swing Speed | 11.3 rpm |
Buckets
| Reference Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Minimum Bucket Capacity | 0.2 yd3 (0.2 m3) |
| Maximum Bucket Capacity | 0.5 yd3 (0.4 m3) |
