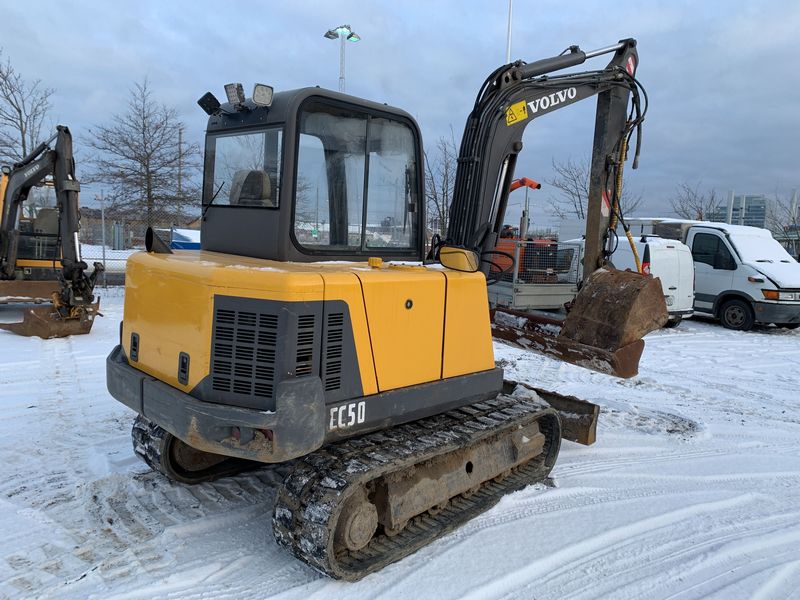

Volvo EC50
Browse All Volvo or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 16.92 ft in (5155 mm) |
| Shipping Height Of Unit | 8.22 ft in (2505 mm) |
| Max Cutting Height | 16.56 ft in (5045 mm) |
| Max Loading Height | 11.8 ft in (3595 mm) |
| Max Reach Along Ground | 18.33 ft in (5585 mm) |
| Max Vertical Wall Digging Depth | 9.6 ft in (2925 mm) |
| Max Digging Depth | 12.19 ft in (3715 mm) |
| Boom/Stick Option (Hex) 1 | Boom 2700mm/Stick 1500mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 16.92 ft in (5155 mm) |
| Shipping Height Of Unit | 8.22 ft in (2505 mm) |
| Max Cutting Height | 17.23 ft in (5250 mm) |
| Max Loading Height | 12.47 ft in (3800 mm) |
| Max Reach Along Ground | 19.61 ft in (5975 mm) |
| Max Digging Depth | 13.49 ft in (4110 mm) |
| Max Vertical Wall Digging Depth | 10.88 ft in (3315 mm) |
| Boom/Stick Option (Hex) 2 | Boom 2700mm/Stick 1900mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 18.2 ft in (5545 mm) |
| Shipping Height Of Unit | 8.22 ft in (2505 mm) |
| Max Cutting Height | 20.33 ft in (6195 mm) |
| Max Loading Height | 14.75 ft in (4495 mm) |
| Max Reach Along Ground | 19.77 ft in (6025 mm) |
| Max Vertical Wall Digging Depth | 10.06 ft in (3065 mm) |
| Max Digging Depth | 11.49 ft in (3500 mm) |
| Boom/Stick Option (Hex) 3 | Articulated Boom/Stick 1500mm |
Boom/Stick Option (Hex) 4
| Max Cutting Height | 21.43 ft in (6530 mm) |
| Max Loading Height | 15.85 ft in (4830 mm) |
| Max Reach Along Ground | 21.08 ft in (6425 mm) |
| Max Digging Depth | 12.8 ft in (3900 mm) |
| Shipping Length Of Unit | 18.2 ft in (5545 mm) |
| Shipping Height Of Unit | 8.22 ft in (2505 mm) |
| Boom/Stick Option (Hex) 4 | Articulated Boom/Stick 1900mm |
| Max Vertical Wall Dig Depth | 11.27 ft in (3435 mm) |
Dimensions
| Width To Outside Of Tracks | 6.07 ft in (1850 mm) |
| Length Of Track On Ground | 5.84 ft in (1780 mm) |
| Ground Clearance | 1.22 ft in (370 mm) |
| Height To Top Of Cab | 8.22 ft in (2505 mm) |
| Tail Swing Radius | 5.16 ft in (1570 mm) |
| Removal Counterweight Clearance | 2.22 ft in (675 mm) |
Undercarriage
| Shoe Size | 15.75 in (400 mm) |
| Track Gauge | 4.76 ft in (1450 mm) |
| Max Travel Speed | 3.11 mph (5 km/h) |
| Ground Pressure | 4.7 psi (32.36 kPa) |
| Number Of Track Rollers Per Side | 4 |
Engine
| Number Of Cylinders | 4 |
| Net Power | 45.2 hp (33.7 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 135.3 cu in (2.3 L) |
| Max Torque | 102.6 lb ft (139 Nm) |
| Torque Measured @ | 2050 rpm |
Operational
| Operating Weight | 10655 lb (4833 kg) |
| Fuel Capacity | 21.2 gal (80 L) |
| Cooling System Fluid Capacity | 2.2 gal (8 L) |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 18.5 gal (70 L) |
| Engine Oil Capacity | 2.2 gal (8 L) |
| Alternator Supplied Amperage | 55 amps |
| Hydraulic System Relief Valve Pressure | 3626 psi (25000 kPa) |
| Hydraulic Pump Flow Capacity | 27.1 gal/min (102.5 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.2 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.4 yd3 (0.3 m3) |
