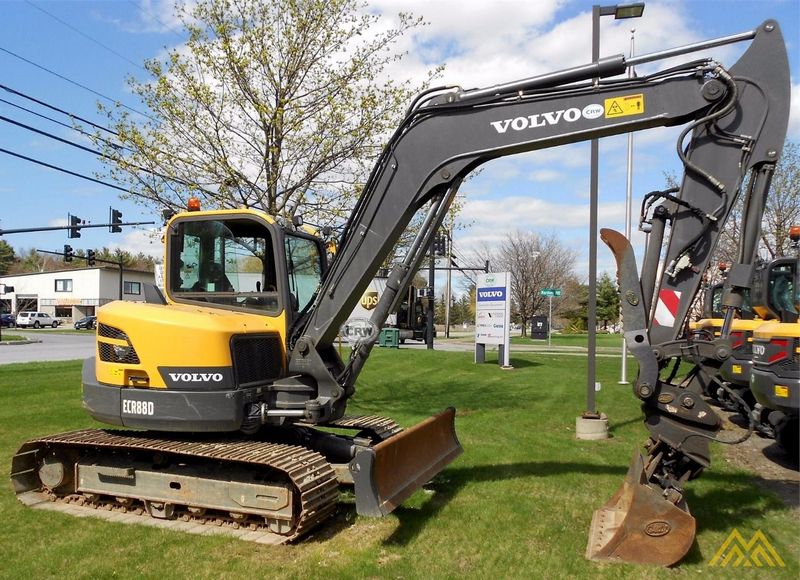

Volvo ECR88B
Browse All Volvo or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 21.04 ft in (6410 mm) |
| Shipping Height Of Unit | 8.8 ft in (2680 mm) |
| Max Loading Height | 16.8 ft in (5120 mm) |
| Max Reach Along Ground | 23.76 ft in (7240 mm) |
| Max Vertical Wall Digging Depth | 10.7 ft in (3260 mm) |
| Max Digging Depth | 15 ft in (4570 mm) |
Dimensions
| Width To Outside Of Tracks | 7.55 ft in (2300 mm) |
| Length Of Track On Ground | 7.22 ft in (2200 mm) |
| Ground Clearance | 1.28 ft in (390 mm) |
| Tail Swing Radius | 3.97 ft in (1210 mm) |
Undercarriage
| Shoe Size | 17.72 in (450 mm) |
| Max Travel Speed | 3.17 mph (5.1 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2244 |
| Engine Model | D3.4 |
| Gross Power | 57.7 hp (43 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 183.1 cu in (3 L) |
Operational
| Operating Weight | 18739.3 lb (8500 kg) |
| Hydraulic System Relief Valve Pressure | 4786.3 psi (33000 kPa) |
| Hydraulic Pump Flow Capacity | 46 gal/min (174 L/min) |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
