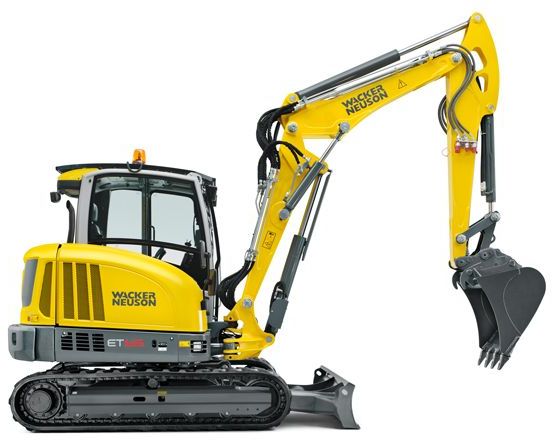

Wacker Neuson ET65
Browse All Wacker Neuson or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 20.14 ft in (6136.64 mm) |
| Shipping Height Of Unit | 8.14 ft in (2479.04 mm) |
| Max Cutting Height | 18.95 ft in (5773.42 mm) |
| Max Loading Height | 12.84 ft in (3911.6 mm) |
| Max Reach Along Ground | 20 ft in (6096 mm) |
| Max Vertical Wall Digging Depth | 7.82 ft in (2382.52 mm) |
| Max Digging Depth | 12.55 ft in (3825.24 mm) |
| Boom/Stick Option (Hex) 1 | Standard - Mono boom |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 20.11 ft in (6129.02 mm) |
| Shipping Height Of Unit | 8.14 ft in (2479.04 mm) |
| Max Cutting Height | 19.54 ft in (5953.76 mm) |
| Max Loading Height | 13.44 ft in (4094.48 mm) |
| Max Reach Along Ground | 20.96 ft in (6388.1 mm) |
| Max Digging Depth | 13.54 ft in (4124.96 mm) |
| Max Vertical Wall Digging Depth | 8.72 ft in (2656.84 mm) |
| Boom/Stick Option (Hex) 2 | Long - Mono boom |
Dimensions
| Width To Outside Of Tracks | 3.29 ft in (1000.76 mm) |
| Length Of Track On Ground | 20.14 ft in (6136.64 mm) |
| Ground Clearance | 0.94 ft in (284.48 mm) |
| Height To Top Of Cab | 8.14 ft in (2479.04 mm) |
| Tail Swing Radius | 4.48 ft in (1363.98 mm) |
Undercarriage
| Shoe Size | 15.7 in (398.78 mm) |
| Max Travel Speed | 3.2 mph (5.15 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Perkins |
| Engine Model | 404F-22T |
| Gross Power | 58.6 hp (43.7 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 135 cu in (2.3 L) |
| Aspiration | Liquid-cooled |
Operational
| Operating Weight | 15331 lb (6954.1 kg) |
| Fuel Capacity | 22.5 gal (85.2 L) |
| Hydraulic System Fluid Capacity | 24.3 gal (92 L) |
| Hydraulic System Relief Valve Pressure | 3481 psi (24000.7 kPa) |
| Hydraulic Pump Flow Capacity | 45.6 gal/min (172.7 L/min) |
