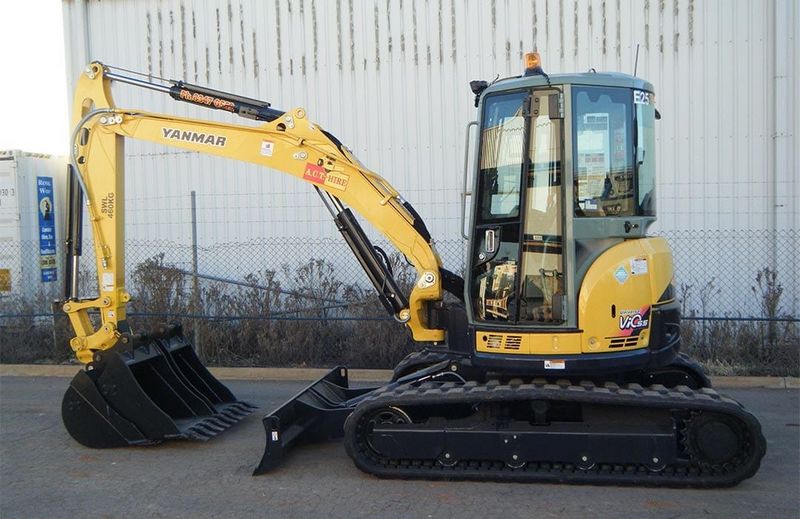

Yanmar Vio55-5B
Browse All Yanmar or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 18.25 ft in (5560 mm) |
| Shipping Height Of Unit | 8.6 ft in (2620 mm) |
| Max Cutting Height | 21.13 ft in (6440 mm) |
| Max Loading Height | 14.44 ft in (4400 mm) |
| Max Reach Along Ground | 20.35 ft in (6200 mm) |
| Max Vertical Wall Digging Depth | 9.52 ft in (2900 mm) |
| Max Digging Depth | 13.06 ft in (3980 mm) |
| Boom/Stick Option (Hex) 1 | Standard |
Dimensions
| Width To Outside Of Tracks | 6.53 ft in (1990 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Height To Top Of Cab | 8.6 ft in (2620 mm) |
| Tail Swing Radius | 3.27 ft in (995 mm) |
Undercarriage
| Shoe Size | 15.75 in (400 mm) |
| Ground Pressure | 4.22 psi (29.1 kPa) |
| Max Travel Speed | 2.7 mph (4.35 km/h) |
Engine
| Engine Make | 2348 |
| Engine Model | 4TNV88-BXBV |
| Net Power | 39.5 hp (29.5 kw) |
| Power Measured @ | 2400 rpm |
Operational
| Operating Weight | 11860.9 lb (5380 kg) |
| Fuel Capacity | 17 gal (64 L) |
| Hydraulic System Relief Valve Pressure | 3553 psi (24497.1 kPa) |
| Hydraulic Pump Flow Capacity | 21.3 gal/min (80.6 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
