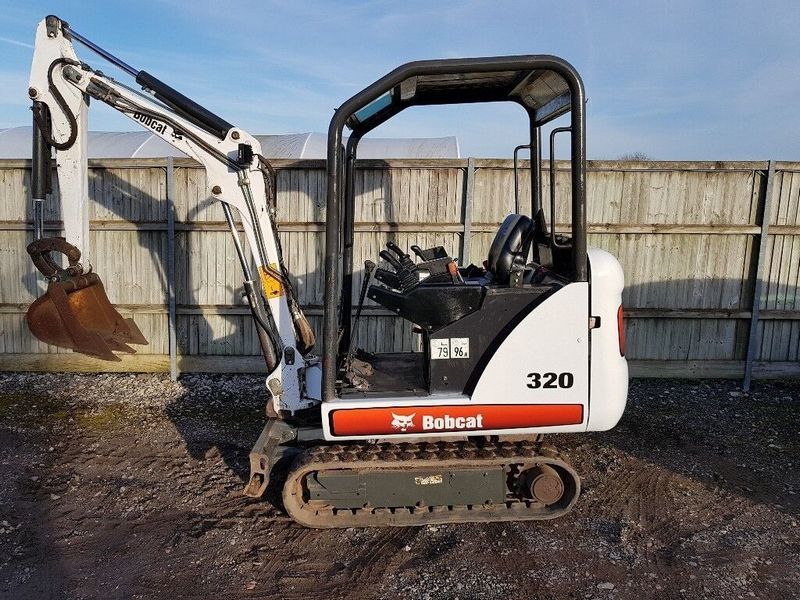

Bobcat 320
Browse All Bobcat or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 5.17 ft in (1574 mm) |
| Max Loading Height | 8.16 ft in (2485 mm) |
| Max Reach Along Ground | 12.53 ft in (3817 mm) |
| Max Digging Depth | 7.21 ft in (2197 mm) |
| Boom/Stick Option (Hex) 1 | standard |
Dimensions
| Width To Outside Of Tracks | 3.22 ft in (980 mm) |
| Length Of Track On Ground | 3.66 ft in (1114 mm) |
| Ground Clearance | 0.59 ft in (179 mm) |
| Tail Swing Radius | 3.51 ft in (1068 mm) |
Undercarriage
| Shoe Size | 9.06 in (230 mm) |
Engine
| Engine Make | 2334 |
| Gross Power | 15.7 hp (11.7 kw) |
Operational
| Operating Weight | 3483.4 lb (1580 kg) |
| Hydraulic System Relief Valve Pressure | 2494.7 psi (17200 kPa) |
| Hydraulic Pump Flow Capacity | 8 gal/min (30 L/min) |
