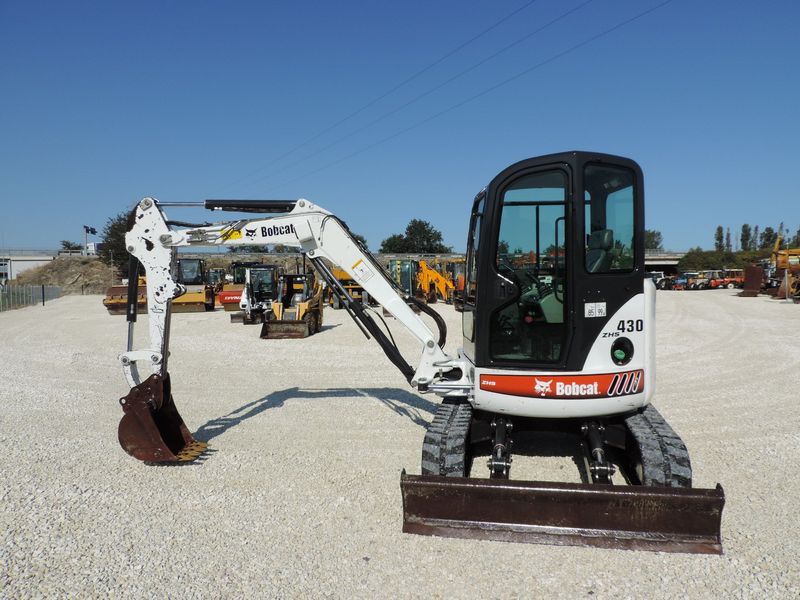

Bobcat 430 Standard
Browse All Bobcat or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 16.07 ft in (4898.14 mm) |
| Max Cutting Height | 15 ft in (4571 mm) |
| Shipping Height Of Unit | 7.96 ft in (2426.21 mm) |
| Max Loading Height | 10.26 ft in (3125 mm) |
| Max Reach Along Ground | 16.73 ft in (5097 mm) |
| Max Vertical Wall Digging Depth | 7.14 ft in (2175 mm) |
| Max Digging Depth | 10.06 ft in (3066 mm) |
| Boom/Stick Option (Hex) 1 | Standard |
Dimensions
| Width To Outside Of Tracks | 5.84 ft in (1780 mm) |
| Length Of Track On Ground | 6.34 ft in (1932 mm) |
| Height To Top Of Cab | 7.96 ft in (2426 mm) |
Undercarriage
| Shoe Size | 12.6 in (320 mm) |
| Max Travel Speed | 2.9 mph (4.67 km/h) |
| Ground Pressure | 4.21 psi (29.03 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2334 |
| Engine Model | V2203-M- DI |
| Gross Power | 42.8 hp (32 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 134.3 cu in (2.2 L) |
Operational
| Operating Weight | 8024.9 lb (3640 kg) |
| Hydraulic Pump Flow Capacity | 24.1 gal/min (90.9 L/min) |
Swing Mechanism
| Swing Speed | 9.1 rpm |
