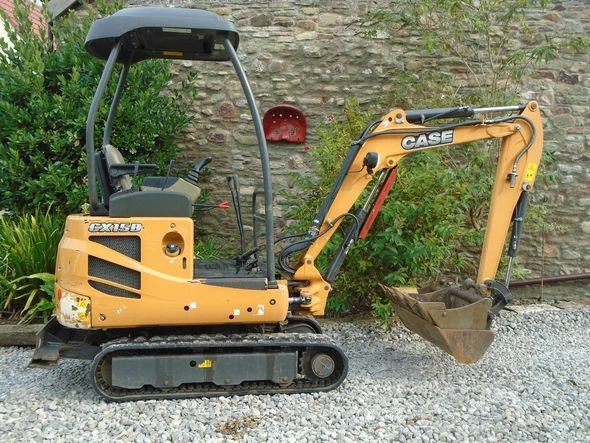

Case CX15B Series 2
Browse All Case or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 11.82 ft in (3600 mm) |
| Max Cutting Height | 11.65 ft in (3550 mm) |
| Shipping Height Of Unit | 7.71 ft in (2350 mm) |
| Max Loading Height | 8.11 ft in (2470 mm) |
| Max Reach Along Ground | 12.16 ft in (3705 mm) |
| Max Vertical Wall Digging Depth | 6.76 ft in (2060 mm) |
| Max Digging Depth | 7.22 ft in (2200 mm) |
| Boom/Stick Option (Hex) 1 | Boom / Stick 1.02 M |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 12.06 ft in (3675 mm) |
| Shipping Length Of Unit | 11.88 ft in (3620 mm) |
| Max Loading Height | 8.52 ft in (2595 mm) |
| Shipping Height Of Unit | 7.71 ft in (2350 mm) |
| Max Reach Along Ground | 12.8 ft in (3900 mm) |
| Max Vertical Wall Digging Depth | 7.42 ft in (2260 mm) |
| Max Digging Depth | 7.88 ft in (2400 mm) |
| Boom/Stick Option (Hex) 2 | Boom / Stick 1.22 M |
Dimensions
| Width To Outside Of Tracks | 3.25 ft in (990 mm) |
| Length Of Track On Ground | 3.97 ft in (1210 mm) |
| Height To Top Of Cab | 7.71 ft in (2350 mm) |
| Tail Swing Radius | 3.48 ft in (1060 mm) |
| Removal Counterweight Clearance | 1.45 ft in (440 mm) |
Undercarriage
| Shoe Size | 9.06 in (230 mm) |
| Track Gauge | 2.5 ft in (760 mm) |
| Max Travel Speed | 2.18 mph (3.5 km/h) |
| Number Of Track Rollers Per Side | 3 |
| Ground Pressure | 4.36 psi (30 kPa) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2251 |
| Engine Model | L3E |
| Gross Power | 15 hp (11.2 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 58 cu in (1 L) |
| Max Torque | 39.5 lb ft (53.5 Nm) |
| Torque Measured @ | 1800 rpm |
Operational
| Operating Weight | 3747.9 lb (1700 kg) |
| Fuel Capacity | 5.2 gal (19.5 L) |
| Cooling System Fluid Capacity | 1 gal (3.5 L) |
| Hydraulic System Fluid Capacity | 3.3 gal (12.3 L) |
| Engine Oil Capacity | 0.8 gal (3 L) |
| Operational Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 2987.8 psi (20600 kPa) |
| Hydraulic Pump Flow Capacity | 4.1 gal/min (15.5 L/min) |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
