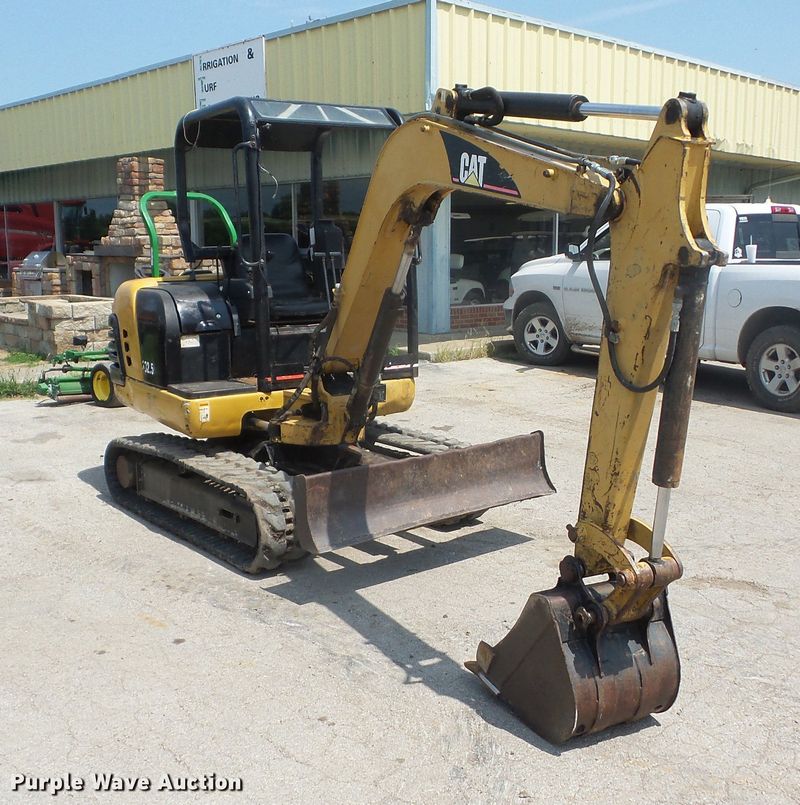

Caterpillar 302.5
Browse All Caterpillar or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 14.38 ft in (4380 mm) |
| Max Loading Height | 10.18 ft in (3100 mm) |
| Max Reach Along Ground | 14.97 ft in (4560 mm) |
| Max Vertical Wall Digging Depth | 6.96 ft in (2120 mm) |
| Max Digging Depth | 8.7 ft in (2650 mm) |
| Boom/Stick Option (Hex) 1 | boom w/ stick 1110mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 14.83 ft in (4520 mm) |
| Max Loading Height | 10.67 ft in (3250 mm) |
| Max Reach Along Ground | 16.18 ft in (4930 mm) |
| Max Vertical Wall Digging Depth | 7.81 ft in (2380 mm) |
| Max Digging Depth | 9.68 ft in (2950 mm) |
| Boom/Stick Option (Hex) 2 | boom w/ stick 1410mm |
Dimensions
| Width To Outside Of Tracks | 3.75 ft in (1140 mm) |
| Length Of Track On Ground | 4.83 ft in (1470 mm) |
| Ground Clearance | 1.02 ft in (310 mm) |
| Height To Top Of Cab | 7.55 ft in (2300 mm) |
| Tail Swing Radius | 4.2 ft in (1280 mm) |
| Track Gauge | 3.75 ft in (1143 mm) |
| Center Ground Clearance | 1 ft in (0.31 m) |
| Height - Over Canopy | 7.58 ft in (2.32 m) |
| Maximum Cutting Height - Long Stick | 14.83 ft in (4.53 m) |
| Maximum Cutting Height - Standard Stick | 14.33 ft in (4.37 m) |
| Maximum Digging Depth - Long Stick | 9.67 ft in (2.95 m) |
| Maximum Digging Depth - Standard Stick | 8.67 ft in (2.65 m) |
| Maximum Dump Height - Long Stick | 10.67 ft in (3.26 m) |
| Maximum Dump Height - Standard Stick | 10.17 ft in (3.1 m) |
| Maximum Horizontal Reach - Long Stick | 16.18 ft in (4.93 m) |
| Maximum Horizontal Reach - Standard Stick | 15.33 ft in (4.68 m) |
| Maximum Reach - Ground Level - Long Stick | 15.83 ft in (4.83 m) |
| Maximum Reach - Ground Level - Standard Stick | 15 ft in (4.58 m) |
| Maximum Vertical Dig Depth - Long Stick | 7.83 ft in (2.39 m) |
| Maximum Vertical Dig Depth - Standard Stick | 7 ft in (2.14 m) |
| Removal Counterweight Clearance | 1.84 ft in (560 mm) |
| Shipping Length | 14.83 ft in (4520.19 mm) |
| Height - Over Cab | 7.58 ft in (2.32 m) |
| Track Shoe Width | 12 ft in (3.66 m) |
| Width - Over Track | 4.75 ft in (1.45 m) |
| Width - Upper Structure | 4.5 ft in (1.38 m) |
| Stick Length - Long Stick | 4.67 ft in (1.43 m) |
| Stick Length - Standard Stick | 3.67 ft in (1.12 m) |
| Swing Radius - Rear | 4.17 ft in (1.28 m) |
Undercarriage
| Shoe Size | 11.82 in (300 mm) |
| Track Gauge | 3.78 ft in (1150 mm) |
| Max Travel Speed | 2.8 mph (4.5 km/h) |
| Drawbar Pull | 4950 lb (22.02 kN) |
Electrical System
| Electrical System Type | Twelve-volt system |
Swing System
| Swing System Type | Hydraulic Motor Driven |
| Machine Swing Speed | 9 rpm |
| Boom Swing - Left - Without Stop | 90 degrees |
| Boom Swing - Left - With Stop | 55 degrees |
| Boom Swing - Right | 50 degrees |
Engine
| Engine Model | 3013 |
| Gross Power | 24.1 hp (18 kw) |
| Displacement | 91.3 cu in (1.5 L) |
| Engine Model | 3013 |
Operational
| Operating Weight | 6027.5 lb (2734 kg) |
| Fuel Capacity | 11 gal (41.5 L) |
| Hydraulic System Fluid Capacity | 13.3 gal (50 L) |
| Hydraulic System Relief Valve Pressure | 2987 psi (20594.7 kPa) |
Weights
| Operating Weight | 5762 lb (2613.6 kg) |
| Operating Weight - With Cab | 6015 lb (2728.4 kg) |
Blade
| Height | 14 in (355.6 mm) |
| Width | 4.8 ft in (1447.8 mm) |
| Lift Height | 13 in (330.2 mm) |
| Dig Depth | 11 in (279.4 mm) |
Hydraulic System
| Operating Pressure - Swing | 2494 psi |
| Pump - Gear (Single) | 4.9 gal/min |
| Pump - Gear (Tandem) | 8.8 gal/min |
| Operating Pressure - Equipment | 2987 psi |
| Operating Pressure - Travel | 2987 psi |
| Digging Force - Stick - Standard | 3124 lb (1417.1 kg) |
| Digging Force - Stick - Long | 2665 lb (1208.9 kg) |
| Digging Force - Bucket | 4928 lb (2235.4 kg) |
| Auxiliary Circuit - Primary (245 Bar/3,553 Psi) | 13.5 gal/min |
Service Refill Capacities
| Fuel Tank | 10.8 gal (40.9 L) |
| Hydraulic Tank | 9.4 gal (35.6 L) |
| Hydraulic System | 13 gal (49.3 L) |
| Engine Oil | 1.5 gal (5.7 L) |
| Cooling System Tag | 1.1 gal (4.2 L) |
Engine Dimensions
| Bore | 3 in (76.2 mm) |
| Stroke | 4 in (101.6 mm) |
| Displacement | 91.3 cu in (1.5 L) |
Msc Comments
| Msc Spec Date | 1/1/2000 |
Travel System
| Maximum Traction Force - High Speed | 2475 lb (1122.7 kg) |
| Maximum Traction Force - Low Speed | 4950 lb (2245.3 kg) |
| Gradeability - Maximum - High | 31 degrees |
| Travel Speed - High | 2.8 mph (4.6 km/h) |
| Travel Speed - Low | 1.6 mph (2.6 km/h) |
| Gradeability - Maximum - Low | 37 degrees |
