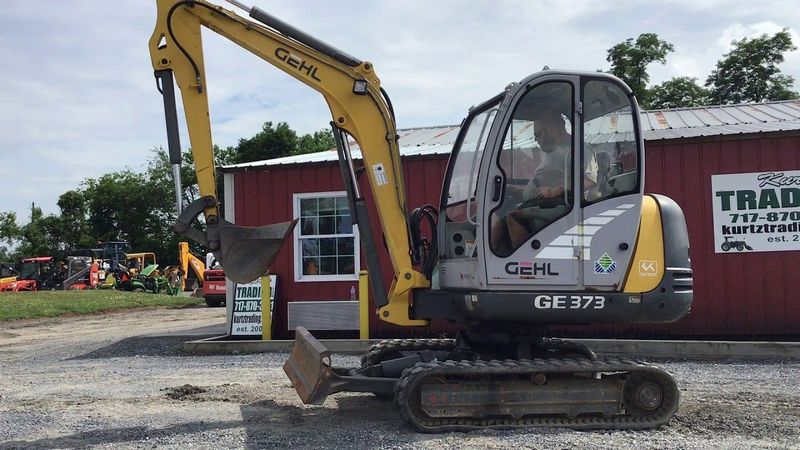

Gehl 373
Browse All Gehl or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 16.47 ft in (5020 mm) |
| Max Loading Height | 12.63 ft in (3848 mm) |
| Max Reach Along Ground | 17.3 ft in (5271 mm) |
| Max Vertical Wall Digging Depth | 6.92 ft in (2108 mm) |
| Max Digging Depth | 10.25 ft in (3124 mm) |
| Boom/Stick Option (Hex) 1 | Standard arm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 17.13 ft in (5220 mm) |
| Max Loading Height | 12.92 ft in (3935 mm) |
| Max Reach Along Ground | 18.2 ft in (5546 mm) |
| Max Vertical Wall Digging Depth | 7.83 ft in (2385 mm) |
| Max Digging Depth | 11.22 ft in (3417 mm) |
| Boom/Stick Option (Hex) 2 | Long arm |
Dimensions
| Length Of Track On Ground | 5.25 ft in (1600 mm) |
| Ground Clearance | 0.92 ft in (279 mm) |
| Height To Top Of Cab | 8.28 ft in (2521 mm) |
| Tail Swing Radius | 4.6 ft in (1400 mm) |
Undercarriage
| Shoe Size | 12.01 in (305 mm) |
| Max Travel Speed | 3 mph (4.83 km/h) |
| Number Of Track Rollers Per Side | 4 |
| Ground Pressure | 5 psi (34.48 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2291 |
| Engine Model | Yanmar 4TNV88-WNS, A TIER II |
| Net Power | 32 hp (23.9 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 134.3 cu in (2.2 L) |
Operational
| Operating Weight | 8215 lb (3726.3 kg) |
| Fuel Capacity | 13.8 gal (52 L) |
| Hydraulic System Fluid Capacity | 13.3 gal (50 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 88 amps |
| Hydraulic System Relief Valve Pressure | 3481 psi (24000.7 kPa) |
| Hydraulic Pump Flow Capacity | 28.2 gal/min (106.8 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.2 m3) |
