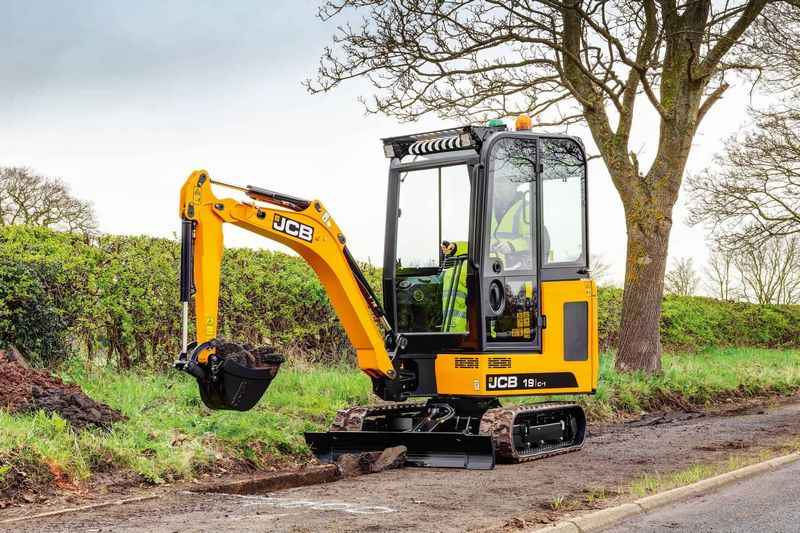

JCB 19C-1 PC
Browse All JCB or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Digging Depth | 7.95 ft in (2421 mm) |
| Maximum Vertical Wallcut Depth | 6.35 ft in (1933 mm) |
| Maximum Digging Depth – Dozer Up | 7.46 ft in (2271 mm) |
| Maximum Height To Dipper Nose Pivot Pin | 10.23 ft in (3116 mm) |
| Minimum Front Swing Radius (No Offset) | 4.89 ft in (1488 mm) |
| Max Digging Height | 11.67 ft in (3556 mm) |
| Max Digging Reach | 12.8 ft in (3899 mm) |
| Max Digging Reach On Ground | 12.58 ft in (3834 mm) |
| Max.Dumping Height | 8.53 ft in (2598 mm) |
| Maximum Digging Depth – Dozer Down | 7.96 ft in (2426 mm) |
Dimensions
| Ground Clearance | 0.54 ft in (162 mm) |
| Tail Swing Radius | 3.62 ft in (1103 mm) |
| Track Gauge | 2.47 ft in (750 mm) |
| Width Over Tracks | 3.22 ft in (980 mm) |
| Cab Width | 38.43 in (976 mm) |
| Height Over Cab | 7.64 ft in (2328 mm) |
| Overall Width Of Superstructure | 3.27 ft in (996 mm) |
| Undercarriage Overall Length | 5.18 ft in (1578 mm) |
| Cab Length | 317.54 gal (1202 L) |
| Transport Length | 139.65 in (3547 mm) |
Undercarriage
| Number Of Bottom Rollers Per Side | 3 |
| Tractive Effort | 29.11 lb (13.2 kg) |
Engine
| Fuel | Diesel |
| Starter Motor | 1.2 KW |
| Engine Model | 403D-07 |
| Gross Power | 15.7 hp (11.7 kw) |
| Cooling System | Water cooled |
| Net Power | 14.5 hp (10.8 kw) |
| Displacement | 22 cu in (0.4 L) |
| Max Torque | 33.7 lb ft (45.6 Nm) |
| Alternator | 60 amps |
Capacities
| Fuel Tank | 5.5 gal (20.5 L) |
| Hydraulic Tank | 4 gal (15 L) |
| Hydraulic System | 7.4 gal (28 L) |
| Engine Oil | 0.7 gal (2.5 L) |
| Engine Coolant | 1.2 gal (4.2 L) |
Operational
| Operating Weight | 3855.9 lb (1749 kg) |
| Operational Voltage | 12 V |
Performance
| Travel Speed Low | 1.3 mph (2 km/h) |
| Gradeability | 35 % |
Weights
| Steel Tracks | 178.6 lb (81 kg) |
| Long Dozer | 19.9 lb (9 kg) |
| Mechanical Quickhitch | 21700.1 in2 (14 m2) |
| Ground Bearing Pressure (Rubber Tracks) | 0.8 psi (0.4 kPa) |
| Ground Bearing Pressure (Steel Tracks) | 0.8 psi (0.4 kPa) |
| Shipping | 3218.8 lb (1460 kg) |
Blade
| Approach Angle | 25.3 degrees |
Hydraulic System
| Excavator/Track Main Relief | 235 bar |
| Slew Main Relief | 167 bar |
Blade
| Maximum Height | 0.8 ft in (239 mm) |
Hydraulic System
| Nominal Output | 9.6 gal/min (36 L/min) |
Blade
| Dig Depth (Below Ground) | 0.8 ft in (225 mm) |
Hydraulic System
| Auxiliary Hydraulic Flow | 8.5 gal/min (32 L/min) |
Blade
| Blade Height | 9.3 in (234 mm) |
| Width | 3.3 ft in (980 mm) |
Boom
| Boom Swing Left | 75 degrees |
| Boom Swing Right | 55 degrees |
| Bucket Rotation | 201 degrees |
| Dipper Rotation | 126 degrees |
| Bucket Tearout | 3507.1 lb (15.6 kN) |
| Dipper Tearout | 1978.4 lb (8.8 kN) |
| Slew Speed | 7.9 rpm |
