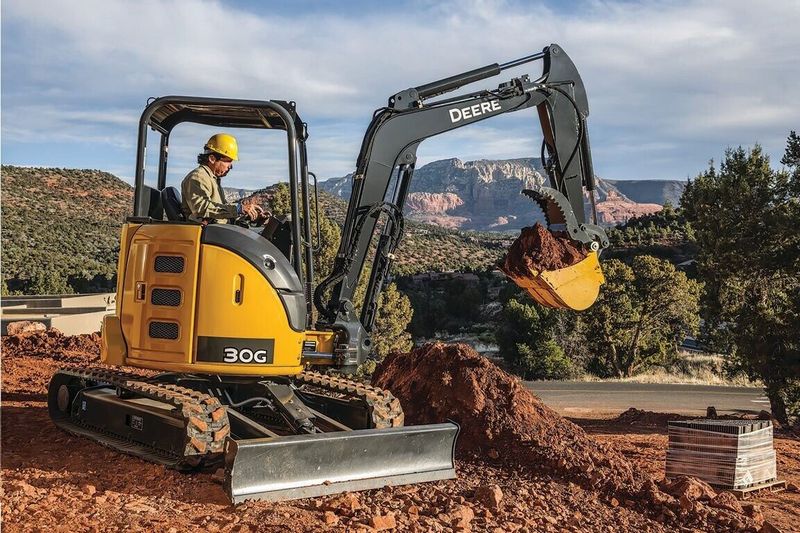

John Deere 30G
Browse All John Deere or Mini Excavator Models
Contents:
Dimensions
| Ground Clearance | 0.92 ft in (280 mm) |
| Tail Swing Radius | 2.55 ft in (775 mm) |
| Track Gauge | 4.11 ft in (1250 mm) |
| Dozer Blade Height | 14.69 in (373 mm) |
| Dozer Blade Width | 68.51 in (1740 mm) |
| Dump Height - Mono Boom | 10.5 ft in (3200 mm) |
| Overall Width | 5.09 ft in (1550 mm) |
| Standard Dipper | 3.84 ft in (1170 mm) |
| Track Length On Ground | 5.5 ft in (1676.4 mm) |
| Transport Height - Maximum | 8.14 ft in (2480 mm) |
| Transport Length Mono Boom | 14.6 ft in (4450 mm) |
| Undercarriage Overall Length | 6.93 ft in (2110 mm) |
| Dig Depth - Mono Boom | 9.16 ft in (2790 mm) |
| Width Over Standard Tracks | 5.09 ft in (1550 mm) |
| Dig Height - Mono Boom | 15.16 ft in (4620 mm) |
| Digging Reach - Mono Boom | 16.05 ft in (4890 mm) |
Driveline
| Displacement | 100.3 cu in (1.7 L) |
| Engine Manufacturer | Yanmar |
| Engine Output | 23.4 hp (17.4 kw) |
| Emission Rating | Tier 4 |
| Rated Speed | 2400 rpm |
| Track Shoe Width | 11.9 in (300 mm) |
| Number Of Cylinders | 3 |
| Number Of Carrier Rollers - Each Side | 1 |
| Number Of Track Rollers - Each Side | 4 |
Capacities
| Fuel Tank - Diesel | 11.1 gal (42 L) |
| Hydraulic Tank | 11.4 gal (43 L) |
| System Voltage | 12 V |
| Number Of Batteries | 1 |
Performance
| Travel Speed | 2.7 mph (4.3 km/h) |
| Slew Speed | 19.8 rpm |
| Ground Bearing Pressure | 4.1 psi (28.3 kPa) |
| Breakout - Bucket | 4993.1 lb (22.3 kN) |
| Main Pumps - Maximum Flow | 20.3 gal/min (76.8 L/min) |
Weights
| Operating Weight | 6845.4 lb (3105 kg) |
