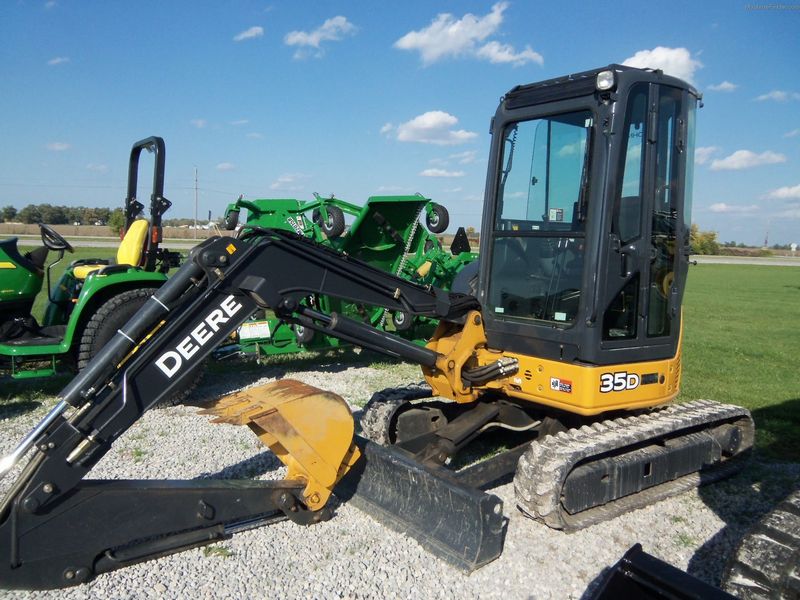

John Deere 35D
Browse All John Deere or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 15.25 ft in (4650 mm) |
| Max Cutting Height | 16 ft in (4900 mm) |
| Shipping Height Of Unit | 8.08 ft in (2460 mm) |
| Max Loading Height | 11.42 ft in (3490 mm) |
| Max Digging Depth | 10 ft in (3060 mm) |
| Boom/Stick Option (Hex) 1 | Standard Arm 4ft. 3.8in. 1320mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 16.44 ft in (5010 mm) |
| Shipping Length Of Unit | 15.69 ft in (4780 mm) |
| Max Loading Height | 11.82 ft in (3600 mm) |
| Shipping Height Of Unit | 8.08 ft in (2460 mm) |
| Max Digging Depth | 11.36 ft in (3460 mm) |
| Boom/Stick Option (Hex) 2 | Long Arm 5ft. 7.5in. 1715mm |
Dimensions
| Width To Outside Of Tracks | 5.75 ft in (1740 mm) |
| Length Of Track On Ground | 5.42 ft in (1650 mm) |
| Ground Clearance | 0.92 ft in (290 mm) |
| Height To Top Of Cab | 8.08 ft in (2460 mm) |
| Tail Swing Radius | 2.83 ft in (870 mm) |
| Removal Counterweight Clearance | 1.83 ft in (560 mm) |
Undercarriage
| Shoe Size | 12 in (300 mm) |
| Ground Pressure | 4.6 psi (31.4 kPa) |
| Max Travel Speed | 2.8 mph (4.5 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 3TNV88 |
| Net Power | 29.9 hp (22 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 100.4 cu in (1.7 L) |
| Aspiration | Natural |
Operational
| Operating Weight | 7672 lb (3480 kg) |
| Fuel Capacity | 10.5 gal (40 L) |
| Hydraulic System Fluid Capacity | 12.2 gal (46 L) |
| Hydraulic Pump Flow Capacity | 21.2 gal/min (80 L/min) |
Swing Mechanism
| Swing Speed | 9.3 rpm |
