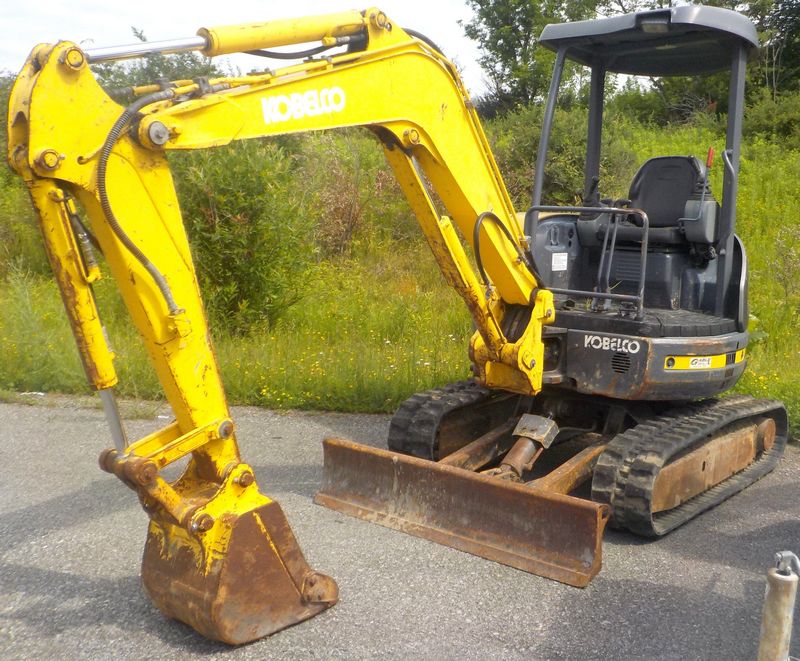

Kobelco 30SR-3
Browse All Kobelco or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 14.41 ft in (4390 mm) |
| Max Cutting Height | 15.65 ft in (4770 mm) |
| Shipping Height Of Unit | 8.44 ft in (2570 mm) |
| Max Loading Height | 11.03 ft in (3360 mm) |
| Max Reach Along Ground | 15.69 ft in (4780 mm) |
| Max Vertical Wall Digging Depth | 7.09 ft in (2160 mm) |
| Max Digging Depth | 9.22 ft in (2810 mm) |
| Boom/Stick Option (Hex) 1 | Stick 3'10" (1180mm) |
Dimensions
| Width To Outside Of Tracks | 5.09 ft in (1550 mm) |
| Length Of Track On Ground | 6.57 ft in (2000 mm) |
| Ground Clearance | 1.09 ft in (330 mm) |
| Height To Top Of Cab | 8.44 ft in (2570 mm) |
| Tail Swing Radius | 2.55 ft in (775 mm) |
| Removal Counterweight Clearance | 1.88 ft in (570 mm) |
Undercarriage
| Shoe Size | 11.82 in (300 mm) |
| Track Gauge | 4.11 ft in (1250 mm) |
| Drawbar Pull | 8663 lb (38.54 kN) |
| Ground Pressure | 4.2 psi (28.96 kPa) |
| Max Travel Speed | 2.8 mph (4.5 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 3TNV88-PYB |
| Net Power | 28.4 hp (21.2 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 100.2 cu in (1.7 L) |
Operational
| Operating Weight | 7100 lb (3220.6 kg) |
| Fuel Capacity | 10 gal (37.9 L) |
| Hydraulic System Fluid Capacity | 12.7 gal (48 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 3336 psi (23000.9 kPa) |
| Hydraulic Pump Flow Capacity | 22.6 gal/min (85.6 L/min) |
Swing Mechanism
| Swing Speed | 8.9 rpm |
| Swing Torque | 752 lb ft (1019.6 Nm) |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.1 m3) |
