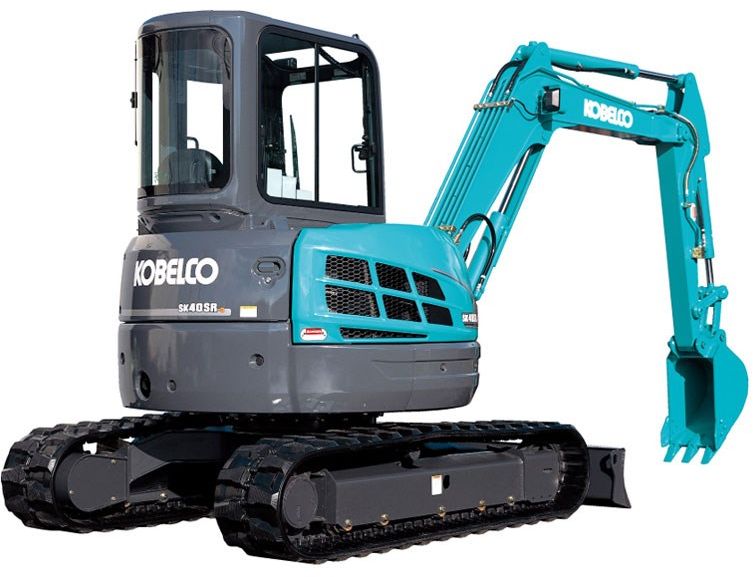

Kobelco SK40SR-5
Browse All Kobelco or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 16.41 ft in (5000 mm) |
| Shipping Height Of Unit | 8.54 ft in (2600 mm) |
| Max Loading Height | 11.88 ft in (3620 mm) |
| Max Reach Along Ground | 18.08 ft in (5510 mm) |
| Max Vertical Wall Digging Depth | 8.63 ft in (2630 mm) |
| Max Digging Depth | 11.13 ft in (3390 mm) |
Dimensions
| Width To Outside Of Tracks | 6.44 ft in (1960 mm) |
| Length Of Track On Ground | 5.98 ft in (1820 mm) |
| Ground Clearance | 1.14 ft in (345 mm) |
| Tail Swing Radius | 3.22 ft in (980 mm) |
Undercarriage
| Shoe Size | 15.75 in (400 mm) |
| Max Travel Speed | 2.86 mph (4.6 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNV88 |
| Gross Power | 39.3 hp (29.3 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 133.1 cu in (2.2 L) |
Operational
| Operating Weight | 9259.5 lb (4200 kg) |
| Hydraulic System Relief Valve Pressure | 3335.9 psi (23000 kPa) |
| Hydraulic Pump Flow Capacity | 34.4 gal/min (130 L/min) |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.1 m3) |
