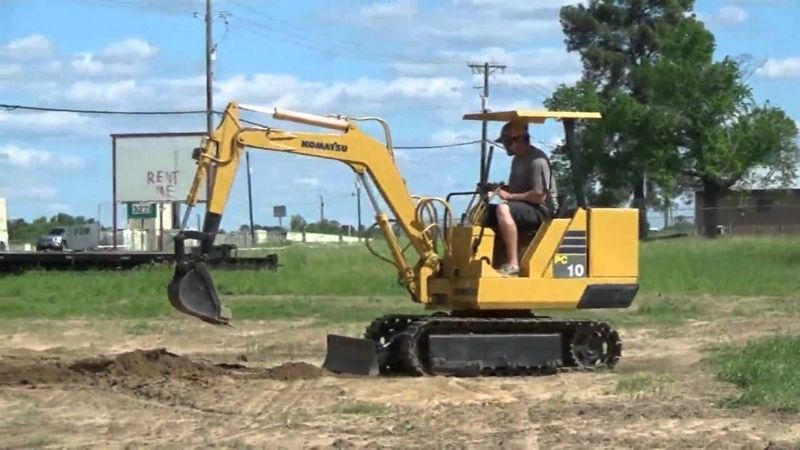

Komatsu PC10-2
Browse All Komatsu or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 12.47 ft in (3800 mm) |
| Max Cutting Height | 10.86 ft in (3310 mm) |
| Shipping Height Of Unit | 7.5 ft in (2285 mm) |
| Max Loading Height | 7.42 ft in (2260 mm) |
| Max Reach Along Ground | 12.26 ft in (3735 mm) |
| Max Vertical Wall Digging Depth | 4.89 ft in (1490 mm) |
| Max Digging Depth | 6.89 ft in (2100 mm) |
| Boom/Stick Option (Hex) 1 | Stick 3'3" (1000mm) |
Dimensions
| Width To Outside Of Tracks | 4.37 ft in (1330 mm) |
| Length Of Track On Ground | 4.35 ft in (1325 mm) |
| Height To Top Of Cab | 7.5 ft in (2285 mm) |
| Tail Swing Radius | 3.93 ft in (1195 mm) |
| Removal Counterweight Clearance | 1.83 ft in (555 mm) |
Undercarriage
| Shoe Size | 9.85 in (250 mm) |
| Track Gauge | 3.55 ft in (1080 mm) |
| Ground Pressure | 3.84 psi (26.48 kPa) |
| Max Travel Speed | 1.06 mph (1.7 km/h) |
Engine
| Engine Make | 2238 |
| Engine Model | 3D75-1A |
| Gross Power | 17 hp (12.7 kw) |
| Displacement | 69 cu in (1.2 L) |
| Max Torque | 43.4 lb ft (58.8 Nm) |
Operational
| Operating Weight | 4387.2 lb (1990 kg) |
| Hydraulic System Relief Valve Pressure | 2490 psi (17168 kPa) |
| Hydraulic Pump Flow Capacity | 14.3 gal/min (54 L/min) |
