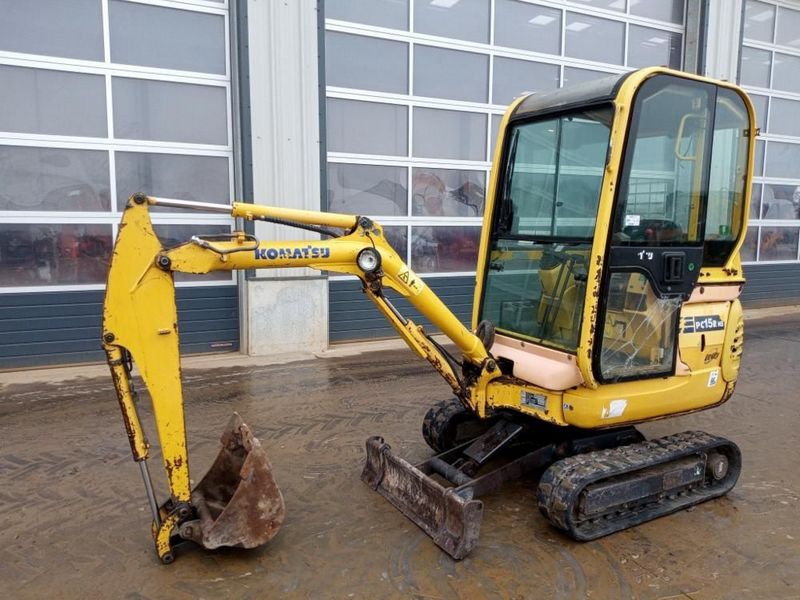

Komatsu PC15R-8
Browse All Komatsu or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 12.29 ft in (3745 mm) |
| Max Cutting Height | 11.42 ft in (3480 mm) |
| Shipping Height Of Unit | 7.31 ft in (2229 mm) |
| Max Loading Height | 8.21 ft in (2500 mm) |
| Max Reach Along Ground | 11.95 ft in (3640 mm) |
| Max Vertical Wall Digging Depth | 5.12 ft in (1560 mm) |
| Max Digging Depth | 7.09 ft in (2160 mm) |
| Boom/Stick Option (Hex) 1 | standard |
Dimensions
| Width To Outside Of Tracks | 3.29 ft in (1000 mm) |
| Length Of Track On Ground | 3.34 ft in (1015 mm) |
| Height To Top Of Cab | 7.32 ft in (2229 mm) |
| Tail Swing Radius | 3.52 ft in (1070 mm) |
| Removal Counterweight Clearance | 1.44 ft in (437 mm) |
Undercarriage
| Shoe Size | 9.06 in (230 mm) |
| Track Gauge | 2.52 ft in (770 mm) |
| Number Of Shoes Per Side | 31 |
| Max Travel Speed | 2.61 mph (4.2 km/h) |
| Ground Pressure | 4.3 psi (29.65 kPa) |
| Number Of Track Rollers Per Side | 3 |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2238 |
| Engine Model | 3D68E-N3FB |
| Gross Power | 17 hp (12.7 kw) |
| Net Power | 15.3 hp (11.5 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 47.8 cu in (0.8 L) |
| Max Torque | lb ft (49 Nm) |
| Torque Measured @ | 1800 rpm |
| Aspiration | Natural |
Operational
| Operating Weight | 3637.7 lb (1650 kg) |
| Fuel Capacity | 5.3 gal (20 L) |
| Cooling System Fluid Capacity | 0.9 gal (3.2 L) |
| Hydraulic System Fluid Capacity | 6.1 gal (23 L) |
| Engine Oil Capacity | 0.8 gal (2.8 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 45 amps |
| Hydraulic System Relief Valve Pressure | 2987.8 psi (20600 kPa) |
| Hydraulic Pump Flow Capacity | 12 gal/min (45.1 L/min) |
Swing Mechanism
| Swing Speed | 10.4 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.1 yd3 (0.1 m3) |
