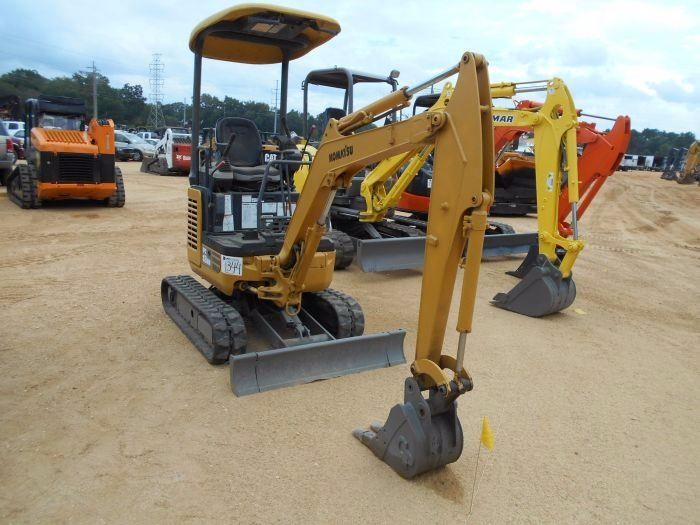

Komatsu PC18MR-2
Browse All Komatsu or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 11.83 ft in (3615 mm) |
| Max Loading Height | 8.58 ft in (2610 mm) |
| Max Reach Along Ground | 13.17 ft in (3935 mm) |
| Max Vertical Wall Digging Depth | 5.83 ft in (1785 mm) |
| Max Digging Depth | 7.08 ft in (2160 mm) |
| Boom/Stick Option (Hex) 1 | 965mm 3'2" |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 12.5 ft in (3820 mm) |
| Max Loading Height | 9.25 ft in (2815 mm) |
| Max Reach Along Ground | 14 ft in (4270 mm) |
| Max Vertical Wall Digging Depth | 13.75 ft in (4190 mm) |
| Max Digging Depth | 7.83 ft in (2400 mm) |
| Boom/Stick Option (Hex) 2 | 1215mm 4'0" |
Dimensions
| Width To Outside Of Tracks | 3.25 ft in (980 mm) |
| Length Of Track On Ground | 5.08 ft in (1555 mm) |
| Ground Clearance | 12 ft in (3650 mm) |
| Height To Top Of Cab | 7.92 ft in (2410 mm) |
| Tail Swing Radius | 2.33 ft in (705 mm) |
Undercarriage
| Max Travel Speed | 2.7 mph (4.3 km/h) |
| Number Of Track Rollers Per Side | 3 |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2238 |
| Engine Model | 3D67E-5 |
| Gross Power | 15 hp (11.2 kw) |
| Power Measured @ | 47.4 rpm |
| Displacement | 47.4 cu in (778 L) |
Operational
| Operating Weight | 1855 lb (4090 kg) |
| Fuel Capacity | 5 gal (19 L) |
| Hydraulic System Fluid Capacity | 4 gal (15.2 L) |
| Engine Oil Capacity | 0.9 gal (3.3 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
Swing Mechanism
| Swing Speed | 8.9 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
