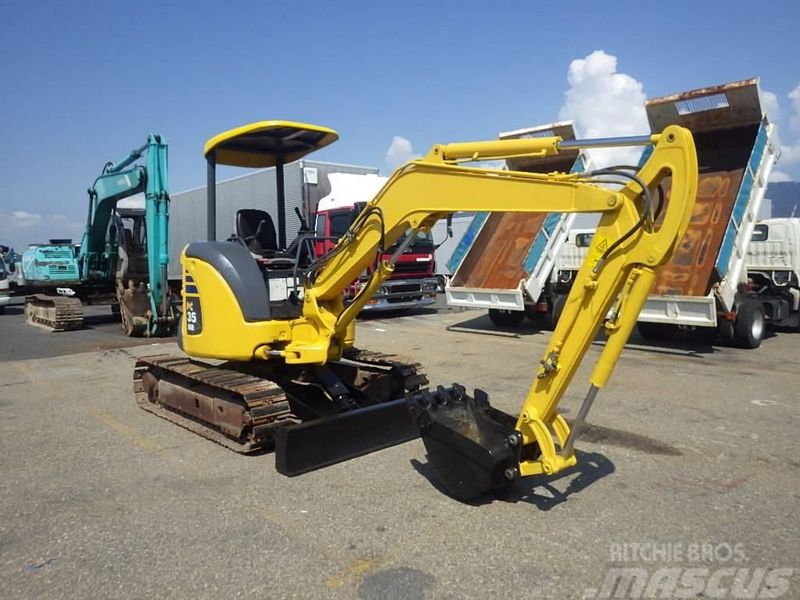

Komatsu PC20MR-2
Browse All Komatsu or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 13.42 ft in (4100 mm) |
| Max Loading Height | 9.25 ft in (2820 mm) |
| Max Reach Along Ground | 13.67 ft in (4170 mm) |
| Max Vertical Wall Digging Depth | 6.42 ft in (1950 mm) |
| Max Digging Depth | 7.75 ft in (2350 mm) |
| Boom/Stick Option (Hex) 1 | 1016mm 3'4" |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 14.42 ft in (4390 mm) |
| Max Loading Height | 10.17 ft in (3110 mm) |
| Max Reach Along Ground | 15.17 ft in (4620 mm) |
| Max Vertical Wall Digging Depth | 7.75 ft in (2350 mm) |
| Max Digging Depth | 9 ft in (2750 mm) |
| Boom/Stick Option (Hex) 2 | 1372mm 4'6" |
Dimensions
| Width To Outside Of Tracks | 3.92 ft in (1200 mm) |
| Length Of Track On Ground | 6.17 ft in (1880 mm) |
| Ground Clearance | 9.08 ft in (230 mm) |
| Height To Top Of Cab | 8.25 ft in (2520 mm) |
| Tail Swing Radius | 2.58 ft in (800 mm) |
| Removal Counterweight Clearance | 13.33 ft in (340 mm) |
Undercarriage
| Number Of Track Rollers Per Side | 3 |
| Max Travel Speed | 2.9 mph (4.6 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2238 |
| Engine Model | 3D76E-5 |
| Gross Power | 20.8 hp (15.5 kw) |
| Power Measured @ | 1.2 rpm |
| Displacement | 68 cu in (1.2 L) |
Operational
| Operating Weight | 2295 lb (5060 kg) |
| Fuel Capacity | 7.4 gal (28 L) |
| Hydraulic System Fluid Capacity | 5 gal (19 L) |
| Engine Oil Capacity | 0.9 gal (3.4 L) |
| Operating Voltage | 12 V |
Swing Mechanism
| Swing Speed | 8.9 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
