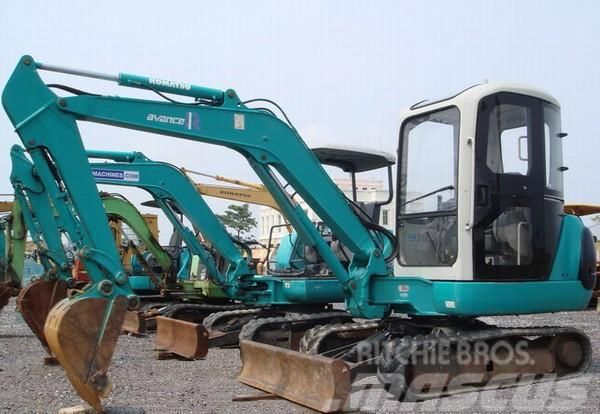

Komatsu PC35R-8
Browse All Komatsu or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 16.7 ft in (5090 mm) |
| Max Cutting Height | 17 ft in (5180 mm) |
| Shipping Height Of Unit | 8.2 ft in (2500 mm) |
| Max Loading Height | 12.31 ft in (3750 mm) |
| Max Reach Along Ground | 16.82 ft in (5125 mm) |
| Max Vertical Wall Digging Depth | 7.67 ft in (2335 mm) |
| Max Digging Depth | 10.34 ft in (3150 mm) |
| Boom/Stick Option (Hex) 1 | 2590mm arm w/ stick 1350mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 17.75 ft in (5410 mm) |
| Shipping Length Of Unit | 16.92 ft in (5155 mm) |
| Max Loading Height | 13.19 ft in (4020 mm) |
| Shipping Height Of Unit | 8.2 ft in (2500 mm) |
| Max Reach Along Ground | 18.07 ft in (5505 mm) |
| Max Vertical Wall Digging Depth | 8.85 ft in (2695 mm) |
| Max Digging Depth | 11.44 ft in (3485 mm) |
| Boom/Stick Option (Hex) 2 | 2590 mm arm w/ stick 1750mm |
Dimensions
| Width To Outside Of Tracks | 4.99 ft in (1520 mm) |
| Length Of Track On Ground | 5.29 ft in (1610 mm) |
| Height To Top Of Cab | 8.21 ft in (2500 mm) |
| Tail Swing Radius | 4.65 ft in (1415 mm) |
| Removal Counterweight Clearance | 1.91 ft in (580 mm) |
Undercarriage
| Shoe Size | 11.82 in (300 mm) |
| Track Gauge | 4 ft in (1220 mm) |
| Ground Pressure | 4.12 psi (28.41 kPa) |
| Number Of Shoes Per Side | 43 |
| Max Travel Speed | 2.86 mph (4.6 km/h) |
| Number Of Track Rollers Per Side | 4 |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2238 |
| Engine Model | 3D84E-3FA |
| Gross Power | 33 hp (24.7 kw) |
| Net Power | 28.2 hp (21.1 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 91.3 cu in (1.5 L) |
| Max Torque | 66.4 lb ft (90 Nm) |
| Torque Measured @ | 1800 rpm |
| Aspiration | Natural |
Operational
| Operating Weight | 7865 lb (3575 kg) |
| Fuel Capacity | 13.7 gal (51.5 L) |
| Cooling System Fluid Capacity | 1.8 gal (6.8 L) |
| Hydraulic System Fluid Capacity | 8.8 gal (33 L) |
| Engine Oil Capacity | 1.9 gal (6.9 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 3626 psi (25000 kPa) |
| Hydraulic Pump Flow Capacity | 26.6 gal/min (100.5 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.2 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.2 yd3 (0.2 m3) |
