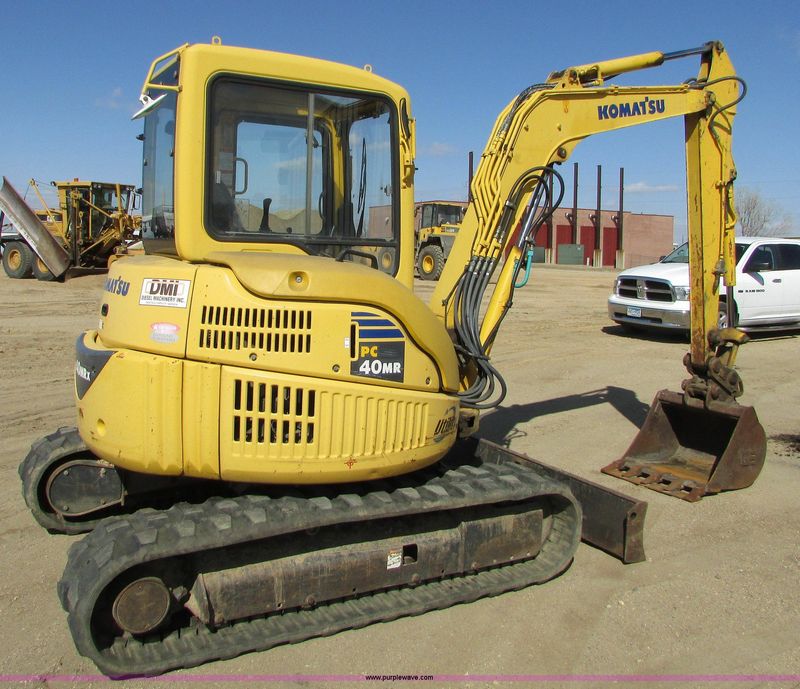

Komatsu PC40MRX-1
Browse All Komatsu or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 17.11 ft in (5215 mm) |
| Max Cutting Height | 17.03 ft in (5190 mm) |
| Shipping Height Of Unit | 8.5 ft in (2590 mm) |
| Max Loading Height | 11.59 ft in (3530 mm) |
| Max Reach Along Ground | 18.08 ft in (5510 mm) |
| Max Vertical Wall Digging Depth | 8.86 ft in (2700 mm) |
| Max Digging Depth | 11.16 ft in (3400 mm) |
| Boom/Stick Option (Hex) 1 | Boom 8'10" (2695mm)/Stick 4'6" (1380mm) |
Dimensions
| Width To Outside Of Tracks | 6.44 ft in (1960 mm) |
| Length Of Track On Ground | 6.37 ft in (1940 mm) |
| Ground Clearance | 1.04 ft in (315 mm) |
| Height To Top Of Cab | 8.5 ft in (2590 mm) |
| Tail Swing Radius | 3.48 ft in (1060 mm) |
| Removal Counterweight Clearance | 2.1 ft in (640 mm) |
Undercarriage
| Shoe Size | 15.75 in (400 mm) |
| Track Gauge | 5.12 ft in (1560 mm) |
| Ground Pressure | 3.8 psi (26.21 kPa) |
| Max Travel Speed | 2.68 mph (4.3 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2238 |
| Engine Model | 3D84E |
| Gross Power | 38 hp (28.3 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 121.8 cu in (2 L) |
Operational
| Operating Weight | 9876.8 lb (4480 kg) |
| Fuel Capacity | 15.9 gal (60 L) |
| Hydraulic System Fluid Capacity | 18 gal (68 L) |
| Hydraulic System Relief Valve Pressure | 3770 psi (25993.3 kPa) |
| Hydraulic Pump Flow Capacity | 29.1 gal/min (110 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.2 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.3 yd3 (0.2 m3) |
