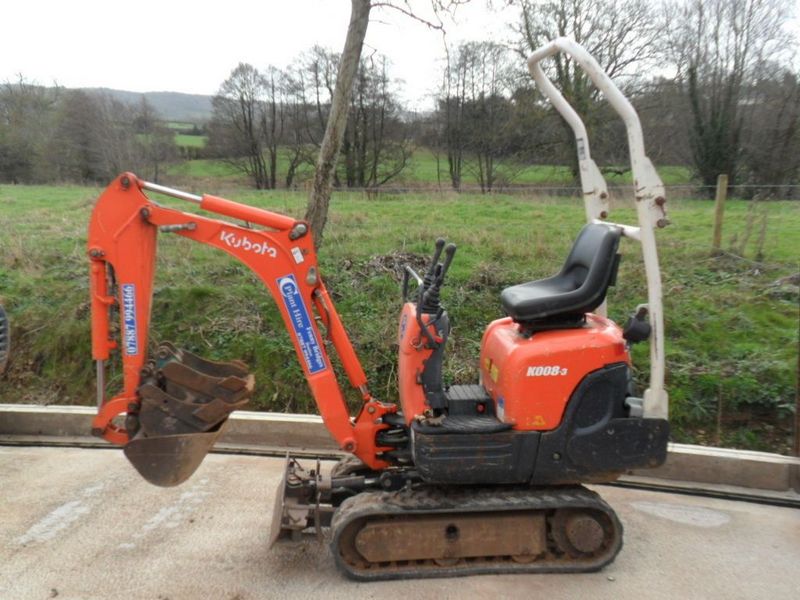

Kubota K008-3
Browse All Kubota or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 9 ft in (2743.2 mm) |
| Max Cutting Height | 9.42 ft in (2870.18 mm) |
| Shipping Height Of Unit | 7.34 ft in (2235.1 mm) |
| Max Loading Height | 6.67 ft in (2031.98 mm) |
| Max Reach Along Ground | 9.92 ft in (3022.58 mm) |
| Max Vertical Wall Digging Depth | 4.52 ft in (1375 mm) |
| Max Digging Depth | 5.63 ft in (1715 mm) |
| Max. Breakout Force Bucket | 2200 lb (997.91 kg) |
| Mximum Dig Radius | 121.07 in (3075 mm) |
| Max Digging Height | 9.42 ft in (2870 mm) |
| Max.Dumping Height | 6.68 ft in (2035 mm) |
| Max. Breakoutarm | 1010 lb (458.13 kg) |
Dimensions
| Width To Outside Of Tracks | 2.3 ft in (700 mm) |
| Ground Clearance | 0.5 ft in (150 mm) |
| Height To Top Of Cab | 2.89 ft in (880 mm) |
| Tail Swing Radius | 2.5 ft in (762 mm) |
| Shoe Width | 0.6 ft in (180 mm) |
Undercarriage
| Shoe Size | 7.09 in (180 mm) |
| Drawbar Pull | 1390 lb (1390 -) |
| Ground Pressure | 3.41 psi (23.52 kPa) |
| Max Travel Speed | 2.5 mph (4.03 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2334 |
| Engine Model | KUBOTA D722-EBH |
| Engine Type | Water cooled |
| Gross Power | 7.7 hp (5.8 kw) |
| Net Power | 7.5 hp (5.6 kw) |
| Power Measured @ | 2050 rpm |
| Displacement | 44 cu in (0.8 L) |
| Fuel Type | Diesel |
Operational
| Operating Weight | 2200 lb (998 kg) |
| Fuel Capacity | 3.2 gal (12.2 L) |
| Hydraulic System Fluid Capacity | 3.3 gal (12.5 L) |
| Hydraulic Pump Flow Capacity | 5.6 gal/min (21 L/min) |
Electrical
| Lighting | Front working |
| Battery Voltage | 12 VDC 30 AH |
| Battery Capacity | 150 CCA |
| Engine Shut-Off | Key |
| Block Heater | None |
Swing Mechanism
| Swing Speed | 8.3 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
