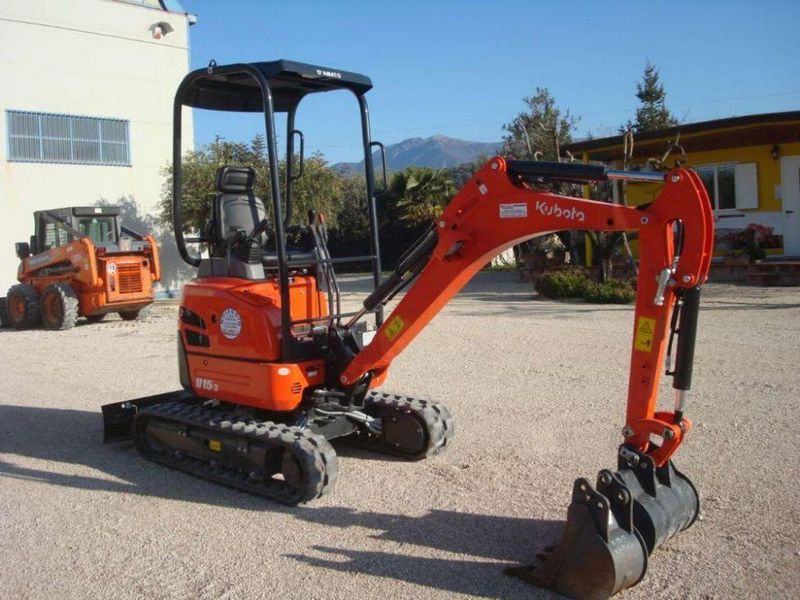

Kubota U15
Browse All Kubota or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 11.72 ft in (3570 mm) |
| Max Cutting Height | 11.62 ft in (3540 mm) |
| Shipping Height Of Unit | 7.55 ft in (2300 mm) |
| Max Loading Height | 8.01 ft in (2440 mm) |
| Max Reach Along Ground | 12.6 ft in (3840 mm) |
| Max Vertical Wall Digging Depth | 6.27 ft in (1910 mm) |
| Max Digging Depth | 7.58 ft in (2310 mm) |
Dimensions
| Width To Outside Of Tracks | 4.07 ft in (1240 mm) |
| Ground Clearance | 0.48 ft in (145 mm) |
Undercarriage
| Max Travel Speed | 2.6 mph (4.19 km/h) |
| Ground Pressure | 3.7 psi (25.52 kPa) |
| Drawbar Pull | 4405 lb (19.6 kN) |
Engine
| Engine Make | 2334 |
| Engine Model | D1105 |
| Gross Power | 12.9 hp (9.7 kw) |
| Net Power | 12.9 hp (9.7 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 47.5 cu in (0.8 L) |
Operational
| Operating Weight | 3704 lb (1680.2 kg) |
| Fuel Capacity | 4.7 gal (17.5 L) |
| Cooling System Fluid Capacity | 0.7 gal (2.7 L) |
| Hydraulic System Fluid Capacity | 3.5 gal (13 L) |
| Engine Oil Capacity | 1 gal (3.6 L) |
| Hydraulic Pump Flow Capacity | 4.4 gal/min (16.7 L/min) |
Swing Mechanism
| Swing Speed | 8.7 rpm |
