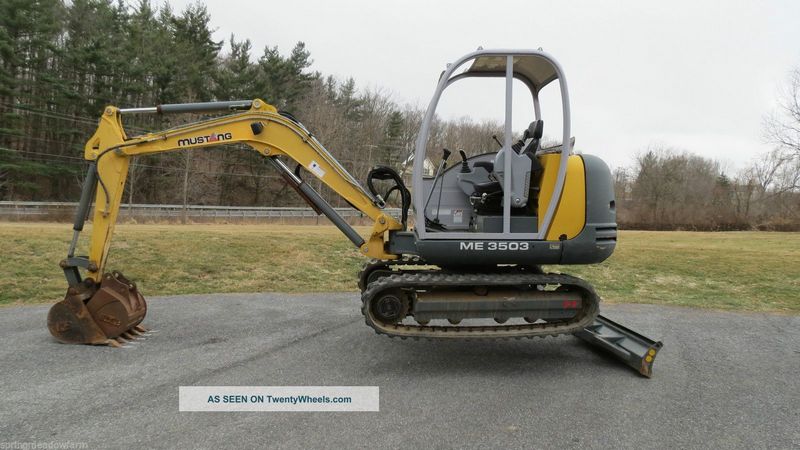

Mustang ME3503
Browse All Mustang or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 13.17 ft in (4026 mm) |
| Max Cutting Height | 17.25 ft in (5271 mm) |
| Shipping Height Of Unit | 7.83 ft in (2408 mm) |
| Max Loading Height | 11.83 ft in (3620 mm) |
| Max Reach Along Ground | 16.93 ft in (5174 mm) |
| Max Vertical Wall Digging Depth | 7.25 ft in (2223 mm) |
| Max Digging Depth | 10.58 ft in (3226 mm) |
| Boom/Stick Option (Hex) 1 | Standard Arm Length 4ft.5.3in. (1354mm ) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 18.18 ft in (5537 mm) |
| Shipping Length Of Unit | 13.17 ft in (4026 mm) |
| Max Loading Height | 12.5 ft in (3810 mm) |
| Shipping Height Of Unit | 7.83 ft in (2408 mm) |
| Max Reach Along Ground | 17.83 ft in (536 mm) |
| Max Vertical Wall Digging Depth | 8.17 ft in (2499 mm) |
| Max Digging Depth | 11.58 ft in (3531 mm) |
| Boom/Stick Option (Hex) 2 | Optional Arm Length 5ft.4.4in. (1636mm ) |
Dimensions
| Width To Outside Of Tracks | 1.01 ft in (305 mm) |
| Length Of Track On Ground | 5.25 ft in (1600 mm) |
| Ground Clearance | 0.92 ft in (279 mm) |
| Height To Top Of Cab | 7.83 ft in (2408 mm) |
| Tail Swing Radius | 4.58 ft in (1400 mm) |
| Removal Counterweight Clearance | 1.33 ft in (409 mm) |
Undercarriage
| Shoe Size | 12 in (305 mm) |
| Track Gauge | 5.25 ft in (1621 mm) |
| Number Of Carrier Rollers Per Side | 1 |
| Max Travel Speed | 3 mph (4.8 km/h) |
| Drawbar Pull | 10053 lb (44.7 kN) |
| Ground Pressure | 4.7 psi (32.41 kPa) |
| Number Of Track Rollers Per Side | 4 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNV88-WNS |
| Gross Power | 48 hp (36 kw) |
| Net Power | 32 hp (24 kw) |
| Displacement | 133.6 cu in (2.1 L) |
Operational
| Operating Weight | 7715 lb (3499 kg) |
| Hydraulic System Relief Valve Pressure | 3481 psi (24000.7 kPa) |
| Hydraulic Pump Flow Capacity | 28.2 gal/min (107 L/min) |
Swing Mechanism
| Swing Speed | 12 rpm |
| Swing Torque | 6569 lb ft (8906.4 Nm) |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.2 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.3 yd3 (0.2 m3) |
