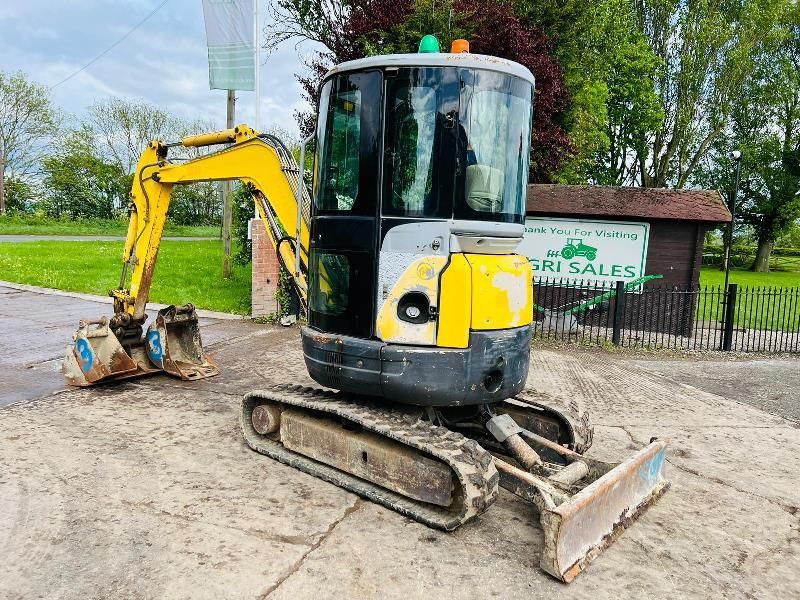

New Holland E30
Browse All New Holland or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 14.42 ft in (4395.22 mm) |
| Max Cutting Height | 15.67 ft in (4776.22 mm) |
| Shipping Height Of Unit | 8.42 ft in (2566.42 mm) |
| Max Loading Height | 11 ft in (3352.8 mm) |
| Max Reach Along Ground | 15.67 ft in (4776.22 mm) |
| Max Vertical Wall Digging Depth | 7.07 ft in (2154.94 mm) |
| Max Digging Depth | 9.25 ft in (2819.4 mm) |
| Boom/Stick Option (Hex) 1 | Mono Boom 3'8" |
Dimensions
| Width To Outside Of Tracks | 3.92 ft in (1194.82 mm) |
| Length Of Track On Ground | 6.58 ft in (2005.59 mm) |
| Ground Clearance | 1.07 ft in (326.14 mm) |
| Height To Top Of Cab | 8.42 ft in (2566.42 mm) |
| Tail Swing Radius | 2.55 ft in (775 mm) |
| Removal Counterweight Clearance | 1.83 ft in (557.79 mm) |
Undercarriage
| Shoe Size | 11.8 in (299.73 mm) |
| Track Gauge | 4.11 ft in (1250 mm) |
| Drawbar Pull | 8663 lb (38.54 kN) |
| Ground Pressure | 4.2 psi (28.96 kPa) |
| Max Travel Speed | 2.8 mph (4.51 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 3TVN88-PYB |
| Net Power | 28.4 hp (21.2 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 100.2 cu in (1.7 L) |
| Aspiration | Natural |
Operational
| Operating Weight | 6680 lb (3030 kg) |
| Fuel Capacity | 10 gal (37.9 L) |
| Hydraulic System Fluid Capacity | 12.7 gal (48 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 3336 psi (23000.9 kPa) |
| Hydraulic Pump Flow Capacity | 15.5 gal/min (58.7 L/min) |
Swing Mechanism
| Swing Speed | 8.9 rpm |
| Swing Torque | 752 lb ft (- Nm) |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.1 m3) |
