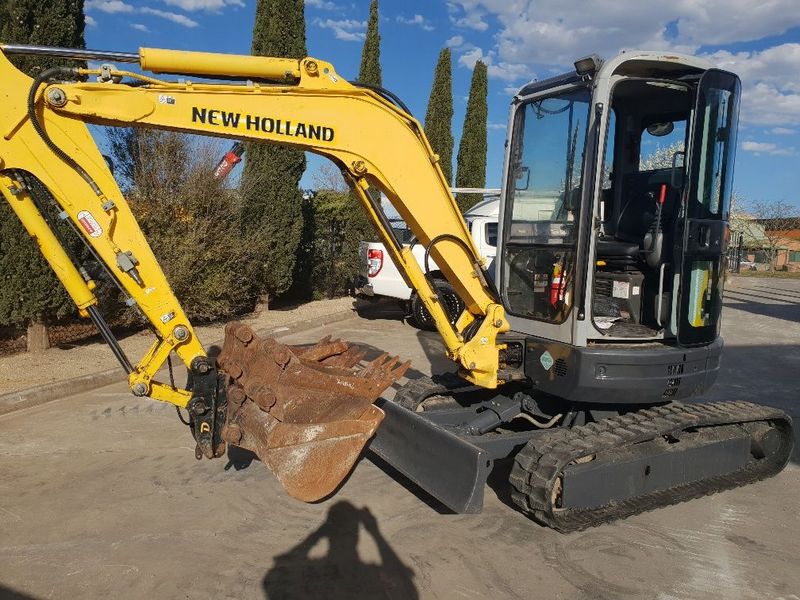

New Holland E35B
Browse All New Holland or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 7.1 ft in (2164.08 mm) |
| Max Digging Depth | 10.1 ft in (3078.48 mm) |
| Min Dumping Clearance | 4.7 ft in (1432.56 mm) |
| Min Height Of Front Swing Radius | 12.5 ft in (3810 mm) |
| Min.Front Swing Radius | 6.8 ft in (2072.64 mm) |
| Ground Pressure | 4.64 psi (32 kPa) |
| Horizontal Digging Stroke - Ground Level | 7.9 ft in (2407.92 mm) |
| Max Digging Height | 16.4 ft in (4998.72 mm) |
| Max Digging Reach | 17.2 ft in (5242.57 mm) |
| Max Dumping Clearance | 11.9 ft in (3627.12 mm) |
| Max Digging Reach On Ground | 16.9 ft in (5151.12 mm) |
Dimensions
| Track Gauge | 4.7 ft in (1432.56 mm) |
| Width Of Crawler Shoe (Rubber) | 11.8 ft in (3596.64 mm) |
| Base Machine Length | 8.81 ft in (2682.24 mm) |
| Boom Length | 8.2 ft in (2499.36 mm) |
| Center Distance Of Tumblers | 5.7 ft in (1737.36 mm) |
| Crawler Height At Tumbler Center | 1.8 ft in (548.64 mm) |
| Ground Clearance Of Rear End | 1.11 ft in (335.28 mm) |
| Ground Clearance Of Undercarriage | 11.8 ft in (3596.64 mm) |
| Overall Height (To Top Of Canopy) | 8.31 ft in (2529.84 mm) |
| Overall Length | 15.5 ft in (4724.4 mm) |
| Overall Length Of Crawler | 7.1 ft in (2164.08 mm) |
| Overall Width | 5.7 ft in (1737.36 mm) |
| Arm Length | 4.41 ft in (1341.12 mm) |
Engine
| Horsepower Sae Net | 28.4 hp (21.2 kw) |
| Engine Model | Yanmar 3TNV88-BPYB |
| Rated Engine Speed | 2400 |
| Displacement | 100.3 cu in (1.7 L) |
Capacities
| Hydraulic Oil Reservoir | 5.4 gal (20.4 L) |
| Hydraulic System Including Oil Reservoir | 11.9 gal (44.8 L) |
| Lubrication Engine Oil | 1.5 gal (5.5 L) |
| Fuel Tank | 11.1 gal (42 L) |
| Cooling System | 1 gal (3.6 L) |
Performance
| Swing Speed | 8.9 rpm |
| Gradeability | 58 % |
| Base Machine Weight | 7762.5 lb (3521 kg) |
| Travel Speed (Turtle) | 1.6 mph (2.6 km/h) |
| Travel Speed (Rabbit) | 2.8 mph (4.6 km/h) |
| Drawbar Pull Force | 8652.9 lb (38.5 kN) |
| Arm Breakout Force, Sae | 4811 lb (21.4 kN) |
| Bucket Breakout Force, Sae | 5417.9 lb (24.1 kN) |
Breakout Forces
| Bucket Breakout Force | 5418 lb (24.2 kN) |
| Arm Breakout Force | 4811 lb (21.5 kN) |
