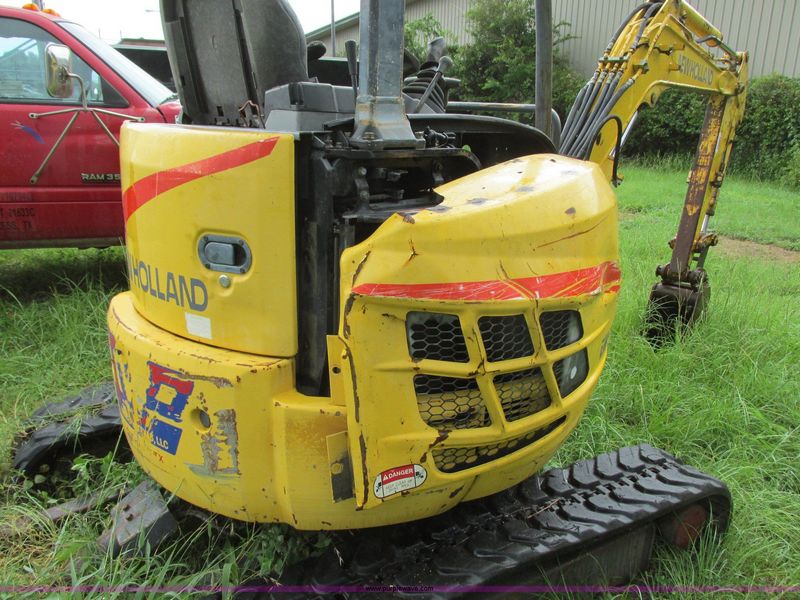

New Holland EH27.B
Browse All New Holland or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 14.67 ft in (4470 mm) |
| Max Loading Height | 10.41 ft in (3170 mm) |
| Max Reach Along Ground | 15.23 ft in (4640 mm) |
| Max Vertical Wall Digging Depth | 7.62 ft in (2320 mm) |
| Max Digging Depth | 8.34 ft in (2540 mm) |
| Boom/Stick Option (Hex) 1 | arm length 1120mm |
Dimensions
| Width To Outside Of Tracks | 4.93 ft in (1500 mm) |
| Length Of Track On Ground | 5.22 ft in (1590 mm) |
| Ground Clearance | 0.83 ft in (250 mm) |
| Height To Top Of Cab | 8.21 ft in (2500 mm) |
| Tail Swing Radius | 2.47 ft in (750 mm) |
| Removal Counterweight Clearance | 1.71 ft in (520 mm) |
Undercarriage
| Shoe Size | 9.85 in (250 mm) |
| Ground Pressure | 4.06 psi (28 kPa) |
| Drawbar Pull | 6368 lb (28.33 kN) |
| Max Travel Speed | 2.55 mph (4.1 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | -3TNV82A-SYB |
| Gross Power | 21.3 hp (15.9 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 81.2 cu in (1.4 L) |
Operational
| Operating Weight | 5557.9 lb (2521 kg) |
| Fuel Capacity | 7.4 gal (28 L) |
| Hydraulic System Fluid Capacity | 6.7 gal (25 L) |
| Operating Voltage | 12 V |
| Hydraulic System Relief Valve Pressure | 3336 psi (23000.9 kPa) |
| Hydraulic Pump Flow Capacity | 20.8 gal/min (78.8 L/min) |
Swing Mechanism
| Swing Speed | 8.7 rpm |
| Swing Torque | 422.5 lb ft (572.9 Nm) |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.1 m3) |
