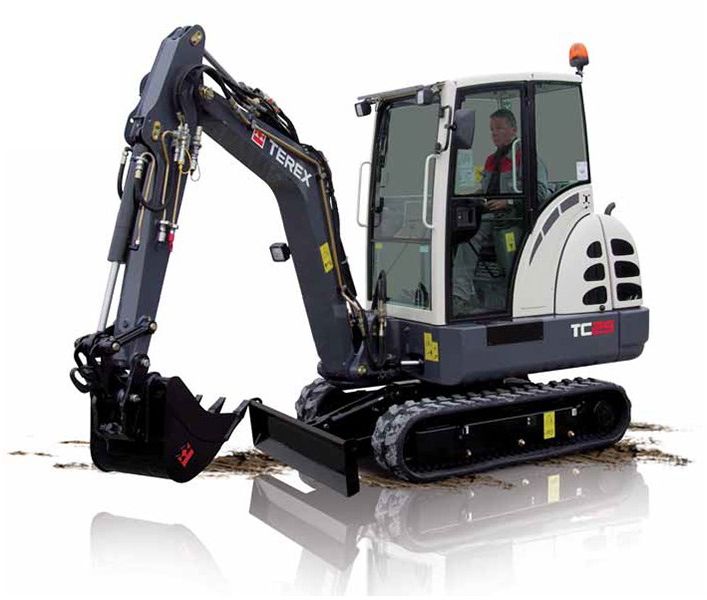

Terex TC29
Browse All Terex or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 13.36 ft in (4070 mm) |
| Max Loading Height | 9.32 ft in (2840 mm) |
| Max Vertical Wall Digging Depth | 4.93 ft in (1500 mm) |
| Max Digging Depth | 9.06 ft in (2760 mm) |
| Boom/Stick Option (Hex) 1 | boom w/ dipperstick 53'' (1350mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 13.75 ft in (4190 mm) |
| Max Loading Height | 9.72 ft in (2960 mm) |
| Max Vertical Wall Digging Depth | 5.09 ft in (1550 mm) |
| Max Digging Depth | 9.72 ft in (2960 mm) |
| Boom/Stick Option (Hex) 2 | boom w/ dipperstick 61'' (1550mm) |
Dimensions
| Width To Outside Of Tracks | 4.6 ft in (1400 mm) |
| Ground Clearance | 0.89 ft in (270 mm) |
| Height To Top Of Cab | 8.21 ft in (2500 mm) |
| Tail Swing Radius | 4.27 ft in (1300 mm) |
Undercarriage
| Shoe Size | 11.82 in (300 mm) |
| Track Gauge | 3.61 ft in (1100 mm) |
| Max Travel Speed | 2.86 mph (4.6 km/h) |
| Drawbar Pull | 6300 lb (28.03 kN) |
| Ground Pressure | 3.9 psi (26.89 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2251 |
| Engine Model | S 4L |
| Net Power | 28 hp (20.9 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 91 cu in (1.5 L) |
Operational
| Operating Weight | 6480 lb (2939.3 kg) |
| Fuel Capacity | 13.8 gal (52 L) |
| Hydraulic System Fluid Capacity | 22.5 gal (85 L) |
| Operating Voltage | 12 V |
| Hydraulic System Relief Valve Pressure | 3050 psi (21029 kPa) |
| Hydraulic Pump Flow Capacity | 26.2 gal/min (99 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.2 yd3 (0.2 m3) |
