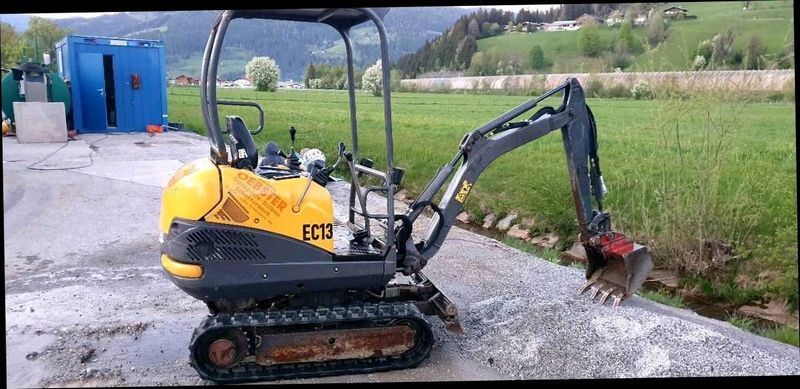

Volvo EC13XTV
Browse All Volvo or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 10.9 ft in (3320 mm) |
| Max Cutting Height | 10.86 ft in (3310 mm) |
| Shipping Height Of Unit | 7.52 ft in (2290 mm) |
| Max Loading Height | 7.62 ft in (2320 mm) |
| Max Reach Along Ground | 11.78 ft in (3590 mm) |
| Max Vertical Wall Digging Depth | 5.12 ft in (1560 mm) |
| Max Digging Depth | 6.83 ft in (2080 mm) |
| Boom/Stick Option (Hex) 1 | Boom 1600mm / Stick 900mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 11.23 ft in (3420 mm) |
| Shipping Length Of Unit | 10.9 ft in (3320 mm) |
| Max Loading Height | 7.98 ft in (2430 mm) |
| Shipping Height Of Unit | 7.52 ft in (2290 mm) |
| Max Reach Along Ground | 12.24 ft in (3730 mm) |
| Max Vertical Wall Digging Depth | 5.58 ft in (1700 mm) |
| Max Digging Depth | 7.32 ft in (2230 mm) |
| Boom/Stick Option (Hex) 2 | Boom 1600mm / Stick 1050mm |
Dimensions
| Width To Outside Of Tracks | 3.12 ft in (950 mm) |
| Length Of Track On Ground | 3.56 ft in (1085 mm) |
| Height To Top Of Cab | 7.52 ft in (2290 mm) |
| Tail Swing Radius | 3.38 ft in (1030 mm) |
| Removal Counterweight Clearance | 1.56 ft in (475 mm) |
Undercarriage
| Shoe Size | 7.88 in (200 mm) |
| Track Gauge | 3.12 ft in (950 mm) |
| Max Travel Speed | 1.93 mph (3.1 km/h) |
| Ground Pressure | 4.27 psi (29.42 kPa) |
Engine
| Engine Make | 2251 |
| Engine Model | L3E2 |
| Gross Power | 19 hp (14.2 kw) |
| Net Power | 15 hp (11.2 kw) |
| Power Measured @ | 2800 rpm |
| Displacement | 58.1 cu in (1 L) |
| Max Torque | 36.9 lb ft (50 Nm) |
| Torque Measured @ | 1800 rpm |
| Aspiration | natural |
Operational
| Operating Weight | 3000.5 lb (1361 kg) |
| Fuel Capacity | 4.8 gal (18 L) |
| Cooling System Fluid Capacity | 1.4 gal (5 L) |
| Hydraulic System Fluid Capacity | 4.7 gal (17.5 L) |
| Engine Oil Capacity | 1 gal (3.6 L) |
| Operational Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 2465.7 psi (17000 kPa) |
| Hydraulic Pump Flow Capacity | 8.2 gal/min (31 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.1 yd3 (0.1 m3) |
