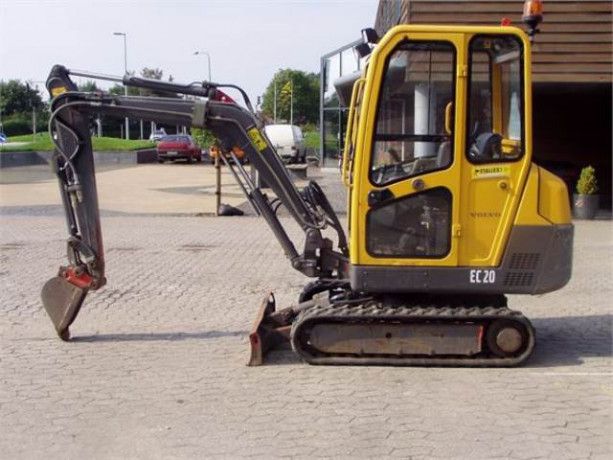

Volvo EC20
Browse All Volvo or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 12.41 ft in (3780 mm) |
| Max Cutting Height | 12.31 ft in (3750 mm) |
| Shipping Height Of Unit | 7.45 ft in (2270 mm) |
| Max Loading Height | 8.76 ft in (2670 mm) |
| Max Reach Along Ground | 13.16 ft in (4010 mm) |
| Max Vertical Wall Digging Depth | 5.19 ft in (1580 mm) |
| Max Digging Depth | 8.44 ft in (2570 mm) |
| Boom/Stick Option (Hex) 1 | Boom 1900mm/Stick 1050mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 12.8 ft in (3900 mm) |
| Shipping Length Of Unit | 12.41 ft in (3780 mm) |
| Max Loading Height | 9.26 ft in (2820 mm) |
| Shipping Height Of Unit | 7.45 ft in (2270 mm) |
| Max Reach Along Ground | 13.95 ft in (4250 mm) |
| Max Vertical Wall Digging Depth | 5.91 ft in (1800 mm) |
| Max Digging Depth | 9.22 ft in (2810 mm) |
| Boom/Stick Option (Hex) 2 | Boom 1900mm/Stick 1300mm |
Dimensions
| Width To Outside Of Tracks | 3.94 ft in (1200 mm) |
| Length Of Track On Ground | 4.07 ft in (1240 mm) |
| Height To Top Of Cab | 7.45 ft in (2270 mm) |
| Tail Swing Radius | 3.81 ft in (1160 mm) |
| Removal Counterweight Clearance | 1.55 ft in (470 mm) |
Undercarriage
| Shoe Size | 9.85 in (250 mm) |
| Track Gauge | 3.12 ft in (950 mm) |
| Max Travel Speed | 2.93 mph (4.7 km/h) |
| Ground Pressure | 4.13 psi (28.44 kPa) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2251 |
| Engine Model | L3E |
| Gross Power | 18.8 hp (14 kw) |
| Net Power | 15.2 hp (11.3 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 58.1 cu in (1 L) |
| Max Torque | 39.9 lb ft (54 Nm) |
| Torque Measured @ | 1850 rpm |
Operational
| Operating Weight | 3924.3 lb (1780 kg) |
| Fuel Capacity | 5.6 gal (21 L) |
| Cooling System Fluid Capacity | 1.2 gal (4.5 L) |
| Hydraulic System Fluid Capacity | 6.1 gal (23 L) |
| Engine Oil Capacity | 1 gal (3.6 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 3045.8 psi (21000 kPa) |
| Hydraulic Pump Flow Capacity | 11.4 gal/min (43 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.2 yd3 (0.1 m3) |
