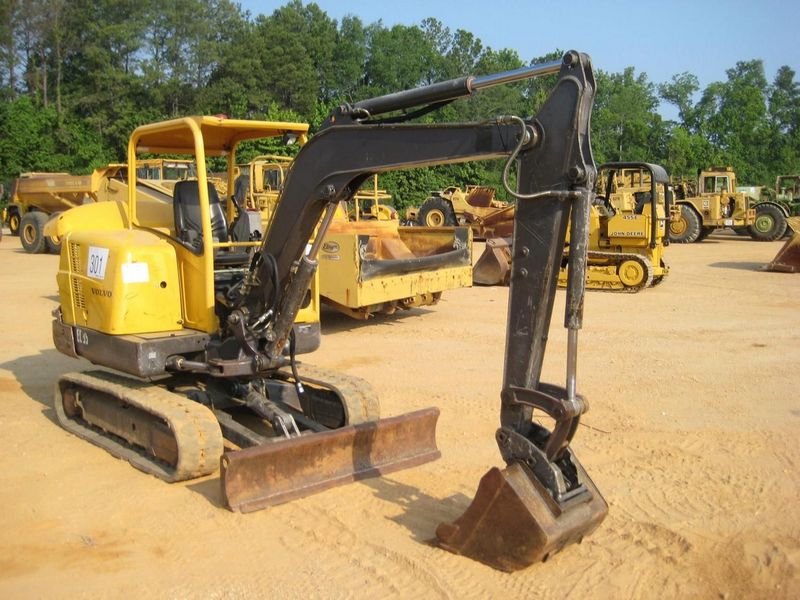

Volvo EC35
Browse All Volvo or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 15.59 ft in (4750 mm) |
| Max Cutting Height | 15.88 ft in (4840 mm) |
| Shipping Height Of Unit | 8.08 ft in (2460 mm) |
| Max Loading Height | 11.59 ft in (3530 mm) |
| Max Reach Along Ground | 16.84 ft in (5130 mm) |
| Max Vertical Wall Digging Depth | 7.22 ft in (2200 mm) |
| Max Digging Depth | 11.23 ft in (3420 mm) |
| Boom/Stick Option (Hex) 1 | Boom 2450mm (8' 0'') / Stick 1400mm (4' 7'') |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 16.47 ft in (5020 mm) |
| Shipping Length Of Unit | 15.59 ft in (4750 mm) |
| Max Loading Height | 12.21 ft in (3720 mm) |
| Shipping Height Of Unit | 8.08 ft in (2460 mm) |
| Max Reach Along Ground | 17.79 ft in (5420 mm) |
| Max Vertical Wall Digging Depth | 8.21 ft in (2500 mm) |
| Max Digging Depth | 12.18 ft in (3710 mm) |
| Boom/Stick Option (Hex) 2 | Boom 2450mm (8' 0'') / Stick 1700mm (5' 7'') |
Dimensions
| Width To Outside Of Tracks | 5.32 ft in (1620 mm) |
| Length Of Track On Ground | 5.25 ft in (1600 mm) |
| Ground Clearance | 0.96 ft in (290 mm) |
| Height To Top Of Cab | 8.08 ft in (2460 mm) |
| Tail Swing Radius | 4.53 ft in (1380 mm) |
| Removal Counterweight Clearance | 1.97 ft in (600 mm) |
Undercarriage
| Shoe Size | 11.82 in (300 mm) |
| Max Travel Speed | 2.68 mph (4.3 km/h) |
| Number Of Track Rollers Per Side | 4 |
| Ground Pressure | 4.7 psi (32.36 kPa) |
| Number Of Carrier Rollers Per Side | 1 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2251 |
| Engine Model | S4L2 |
| Gross Power | 37 hp (27.6 kw) |
| Net Power | 29.3 hp (21.9 kw) |
| Power Measured @ | 2800 rpm |
| Displacement | 107.3 cu in (1.8 L) |
| Max Torque | 75.3 lb ft (102 Nm) |
| Torque Measured @ | 1600 rpm |
| Aspiration | natural |
Operational
| Operating Weight | 7544.3 lb (3422 kg) |
| Fuel Capacity | 17.5 gal (66 L) |
| Cooling System Fluid Capacity | 2.2 gal (8 L) |
| Hydraulic System Fluid Capacity | 16.4 gal (62 L) |
| Engine Oil Capacity | 2.1 gal (7.7 L) |
| Operational Voltage | 12 V |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 3335 psi (22994 kPa) |
| Hydraulic Pump Flow Capacity | 4.7 gal/min (17.6 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.3 yd3 (0.2 m3) |
