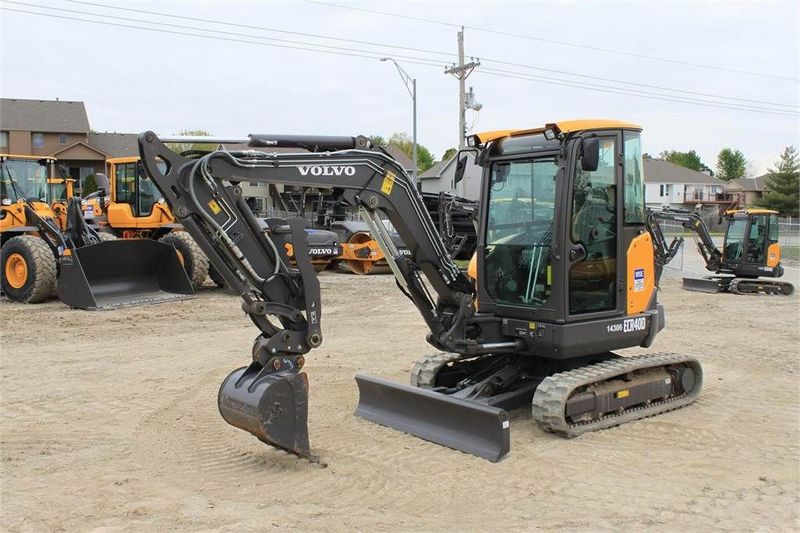

Volvo ECR 40 D
Browse All Volvo or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 15.39 ft in (4690 mm) |
| Max Vertical Wall Digging Depth | 8.28 ft in (2521 mm) |
| Max Digging Depth | 11.25 ft in (3428 mm) |
| Boom/Stick Option (Hex) 1 | Arm - 1400mm,47 ft in |
| Max Digging Reach | 18.16 ft in (5533 mm) |
| Max Digging Reach On Ground | 17.76 ft in (5411 mm) |
| Max.Dumping Height | 10.99 ft in (3347 mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 15.93 ft in (4853 mm) |
| Max Vertical Wall Digging Depth | 9.23 ft in (2811 mm) |
| Max Digging Depth | 12.22 ft in (3722 mm) |
| Boom/Stick Option (Hex) 2 | Arm - 1700 mm, 5.7 ft in |
| Max.Dumping Height | 11.53 ft in (3514 mm) |
| Max Digging Reach On Ground | 18.7 ft in (5699 mm) |
| Max Digging Reach | 19.08 ft in (5813 mm) |
Dimensions
| Tail Swing Radius | 5.17 ft in (1575 mm) |
| Minimum Ground Clearance | 11.23 in (285 mm) |
| Dozer Blade Width | 70.08 in (1780 mm) |
| Max. Cutting Height | 15.39 ft in (4690 mm) |
| Tumbler Length | 5.27 ft in (1604 mm) |
| Overall Length | 15.69 ft in (4780 mm) |
| Shoe Width | 0.99 ft in (300 mm) |
| Track Length | 80.91 in (2055 mm) |
| Height | 8.14 ft in (2481 mm) |
Undercarriage
| Shoe Width – Rubber | 11.82 in (300 mm) |
| Tracks | 2 X 39 Shoes |
| Number Of Bottom Rollers Per Side | 4 |
| Number Of Top Rollers Per Side | 1 |
| Track Tension | by grease piston |
| Drawbar Pull | 696907.67 lb (3100 kN) |
Speeds
| Speed -On Road | 30 mph (48.3 km/h) |
| Speed -Off Road | 20 mph (32.2 km/h) |
| Creep | 10 mph (16.1 km/h) |
| Min Turning Radius | 5.1 ft in (1.6 m) |
Electrical System
| Battery Capacity | 74 Ah |
| Voltage | 12 V V (deletedelete) |
| Battery | 1X 12 V |
Swing System
| Max - Slew Speed | 9 rpm |
| Max - Slew Torque | 523.7 lb ft (710 Nm) |
Engine
| Max Power | 2200 rpm |
| Number Of Cylinders | 4 |
| Engine Model | D1.7A |
| Rated Engine Speed | 1600 rpm |
| Gross Power | 24.8 hp (18.5 kw) |
| Displacement | 100.5 cu in (1.7 L) |
| Max Torque | 71.6 lb ft (97 Nm) |
| Bore | 3.5 in (87 mm) |
| Stroke | 3.7 in (92.4 mm) |
Capacities
| Hydraulic Tank - Total System | 16.4 gal (62 L) |
| Hydraulic Tank | 8.5 gal (32 L) |
| Engine Oil | 1.9 gal (7 L) |
| Engine Coolant | 1.9 gal (7 L) |
Operational
| Operating Weight | 9833 lb (4460.2 kg) |
Performance
| Travel Speed Low | 2.7 mph (4.4 km/h) |
| Travel Speed - High | 4.5 mph (7.3 km/h) |
| Gradeability | 20 % |
Loader
| Breakout Force | 7394 (IBF) |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
