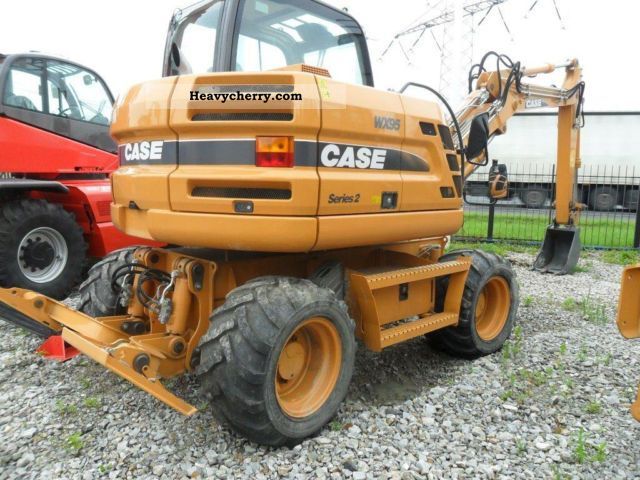

Case WX95
Browse All Case or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 22.77 ft in (6940 mm) |
| Shipping Height Of Unit | 9.93 ft in (3025 mm) |
| Max Reach Along Ground | 25.41 ft in (7743 mm) |
| Max Vertical Wall Dig Depth | 7.02 ft in (2138 mm) |
| Max Digging Depth | 12.97 ft in (3951 mm) |
Dimensions
| Wheelbase | 7.22 ft in (2200 mm) |
| Overall Width | 23.99 in (7310 mm) |
| Ground Clearance | 0.96 ft in (290 mm) |
| Overall Width - Outriggers Down | 8.85 ft in (2695 mm) |
| Height To Top Of Cab | 9.93 ft in (3025 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2239 |
| Engine Model | 439TC-M2 |
| Net Power | 99 hp (73.9 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 238 cu in (3.9 L) |
| Aspiration | Turbocharged |
Operational
| Fuel Capacity | 33.9 gal (128 L) |
| Operating Weight | 21054.2 lb (9550 kg) |
| Cooling System Fluid Capacity | 5.9 gal (22 L) |
| Engine Oil Capacity | 3.5 gal (13 L) |
| Hydraulic System Fluid Capacity | 24.9 gal (94 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Hydraulic System Relief Valve Pressure | 5076.4 psi (35000 kPa) |
| Hydraulic Pump Flow Capacity | 39.9 gal/min (151 L/min) |
| Tire Size | 500/45-20 |
Swing Mechanism
| Swing Speed | 8 rpm |
| Swing Torque | lb ft (23 Nm) |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 20.6 mph (33 km/h) |
