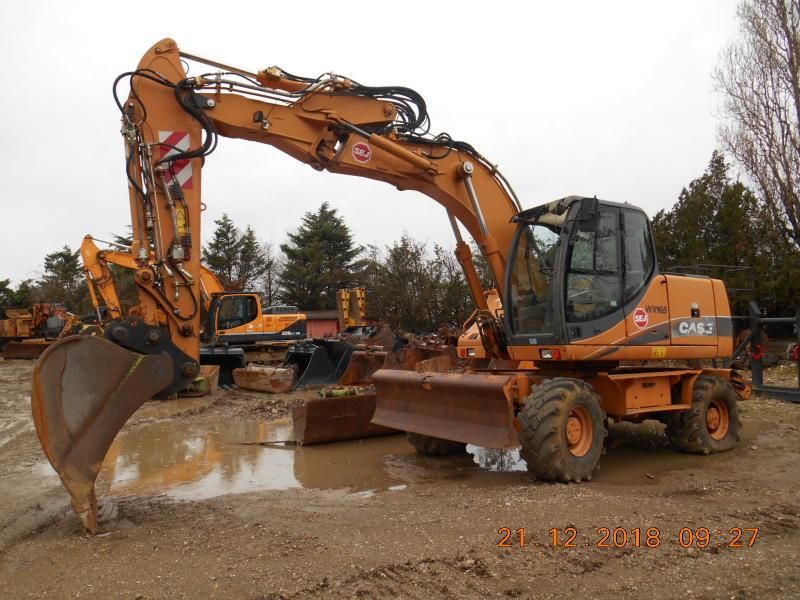

Case WX165
Browse All Case or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 26.13 ft in (7963 mm) |
| Shipping Height Of Unit | 9.91 ft in (3020 mm) |
| Max Cutting Height | 29.2 ft in (8900 mm) |
| Max Loading Height | 21 ft in (6400 mm) |
| Max Reach Along Ground | 28.55 ft in (8700 mm) |
| Max Vertical Wall Dig Depth | 10.83 ft in (3300 mm) |
| Max Digging Depth | 17.72 ft in (5400 mm) |
| Boom/Stick Option (Mex) 1 | Monoboom 4.8m w/ dipper 2.3m |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 26.25 ft in (8000 mm) |
| Shipping Height Of Unit | 10.34 ft in (3150 mm) |
| Max Cutting Height | 29.86 ft in (9100 mm) |
| Max Loading Height | 21.33 ft in (6500 mm) |
| Max Reach Along Ground | 29.2 ft in (8900 mm) |
| Max Vertical Wall Dig Depth | 11.82 ft in (3600 mm) |
| Max Digging Depth | 18.71 ft in (5700 mm) |
| Boom/Stick Option (Mex) 2 | Monoboom 4.8m w/ dipper 2.6m |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 11.41 ft in (3477 mm) |
| Shipping Length Of Unit | 25.82 ft in (7869 mm) |
| Max Cutting Height | 30.19 ft in (9200 mm) |
| Max Loading Height | 21.99 ft in (6700 mm) |
| Max Reach Along Ground | 30.19 ft in (9200 mm) |
| Max Vertical Wall Dig Depth | 12.47 ft in (3800 mm) |
| Max Digging Depth | 19.69 ft in (6000 mm) |
| Boom/Stick Option (Mex) 3 | Monoboom 4.8m w/ dipper 2.9m |
Dimensions
| Wheelbase | 8.37 ft in (2550 mm) |
| Tail Swing Radius | 6.57 ft in (2000 mm) |
| Overall Width | 8.21 in (2500 mm) |
| Ground Clearance | 1.15 ft in (350 mm) |
| Overall Width - Outriggers Down | 12.83 ft in (3910 mm) |
| Height To Top Of Cab | 9.98 ft in (3040 mm) |
| Upper Structure Clearance | 4.04 ft in (1230 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2239 |
| Engine Model | 659TA-M2 |
| Net Power | 141 hp (105.2 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | Turbocharged and Intercooled |
Operational
| Fuel Capacity | 71.4 gal (270 L) |
| Operating Weight | 36096.3 lb (16373 kg) |
| Cooling System Fluid Capacity | 6.7 gal (25 L) |
| Engine Oil Capacity | 4.3 gal (16 L) |
| Hydraulic System Fluid Capacity | 37 gal (140 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Hydraulic System Relief Valve Pressure | 5076.4 psi (35000 kPa) |
| Hydraulic Pump Type | 3 variable displacement, axial piston |
| Hydraulic Pump Flow Capacity | 97.8 gal/min (370 L/min) |
| Tire Size | 18-19.5XF |
Swing Mechanism
| Swing Speed | 9 rpm |
| Swing Torque | 28027.4 lb ft (38000 Nm) |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 18.7 mph (30 km/h) |
Buckets
| Reference Bucket Capacity | 1 yd3 (0.8 m3) |
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 1.3 yd3 (1 m3) |
